How far can a 2×4, 2×6, 2×8 and 2×10 ceiling joist span

How far can a 2×4, 2×6, 2×8 and 2×10 ceiling joist span | how far can a 2×6 ceiling joist span | how far can a 2×8 ceiling joist span | how far can a 2×10 floor joist span | how far can a 2×4 floor joist span without support.

There are different depth of ceiling joist are used in floor construction such as 2×4, 2×6, 2×8 and 2×10 made of different species of wood (southern yellow pine & Douglas fir) and different grade such as grade – 1, grade – 2, grade – 3. Southern yellow pine is strongest species of wood that can span more distance compared to other species of wood. Grade 1 lumber have higher strength than other grade Lumber due to fewer knots.

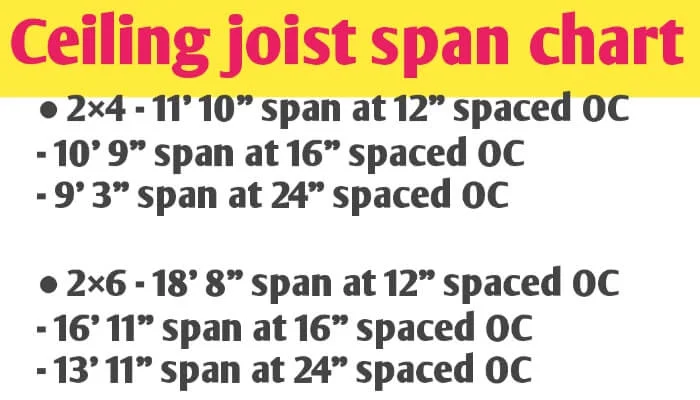

Ceiling joist span chart
Ceiling joist span chart

Ceiling joists provide support for more than one surface in your home. The first surface is, unsurprisingly, the ceiling, the materials of which attach directly to the joists. The other surfaces are the walls, which the joists span the distance between, providing a source of support to keep the walls from shifting.

Ceiling joists are a critical element of a house’s structure. They not only support the weight of the ceiling material, but also bear the outward pressure that is placed on exterior walls from the weight of the roof. The spacing and allowable span of ceiling joists in residential construction is standardized according to building codes, which cover not only basic wall-to-wall room design but nonparallel ceiling joist construction as well.

Ceiling Joists are technically beams that typically spans relatively short distances compared to beams and are made of wood, steel, or engineered wood or lumber. How far can a 2×4, 2×6, 2×8 and 2×10 ceiling joist span depending on different size of Lumber, species of wood, grade of wood, spacing between the joist, expected dead and live load of structure that coming to joist.

Not all the type of species of wood created equally strong and type of tree used to make joist affects the span allowed. Southern yellow pine is strongest species of wood that can span more distance compared to other species of wood. Grade 1 lumber have higher strength than other grade Lumber due to fewer knots.

How far apart are ceiling joists

Spacing between ceiling joist for different sizes are kept at 12 inches, 16 inches and 24 inches apart. The joist which are kept at lower spacing can allow longer distance to span as compared to joist spaced further apart. Standard spacing between floors joist is 16 inches.

Ceiling joists are usually installed either 16 or 24 inches on center, which means roughly 16 or 24 inches apart.

How far can a 2×4, 2×6, 2×8 and 2×10 ceiling joist span

How far can a 2×4, 2×6, 2×8 and 2×10 ceiling joist span depending on different size of Lumber, species of wood, grade of wood, spacing between the joist, expected dead and live load of structure that coming to joist.

How far can a 2×4 ceiling joist span:- as per general thumb rules and guideline, joist made of Spruce- pine-Fir by using grade #2, a 2×4 ceiling joists can span up to 8 feet and 9 inches from beam to beam when spaced the standard 16 inches apart with a maximum ceiling loads are assumed to be 20 PSF and roof pitch is not steeper than 3 in 12.

How far can a 2×6 ceiling joist span:- as per general thumb rules and guideline, joist made of Spruce- pine-Fir by using grade #2, a 2×6 ceiling joists can span up to 13 feet and 9 inches from beam to beam when spaced the standard 16 inches apart with a maximum ceiling loads are assumed to be 20 PSF and roof pitch is not steeper than 3 in 12.

How far can a 2×8 ceiling joist span:- as per general thumb rules and guideline, joist made of Spruce- pine-Fir by using grade #2, a 2×8 ceiling joists can span up to 18 feet and 2 inches from beam to beam when spaced the standard 16 inches apart with a maximum ceiling loads are assumed to be 20 PSF and roof pitch is not steeper than 3 in 12.

How far can a 2×10 ceiling joist span:- as per general thumb rules and guideline, joist made of Spruce- pine-Fir by using grade #2, a 2×10 ceiling joists can span up to 23 feet and 2 inches from beam to beam when spaced the standard 16 inches apart with a maximum ceiling loads are assumed to be 20 PSF and roof pitch is not steeper than 3 in 12.

Conclusions:-
Joist made of Spruce- pine-Fir by using grade #2, a 2×4 ceiling joists can span up to 8 feet and 9 inches, 2×6 upto 13′ 6″, 2×8 upto 18′ 2″ and 2×10 upto 20 feet and 2 inches when spaced the standard 16 inches apart with a maximum ceiling loads of 20 PSF.
