A queen post truss is a type of roof truss used in construction, primarily for supporting the roof of a building. It consists of a horizontal beam called the tie beam, supported by two vertical posts known as queen posts. These queen posts are positioned between the tie beam and the rafters. Queen post trusses are often used in traditional timber framing and are known for their structural stability and aesthetic appeal. They are commonly found in older buildings and historical structures.
In this article i shall briefly discussed about the queen post truss, queen post truss roof, queen post truss span, it’s details description about design and advantages and also disadvantages of queen post truss roof.

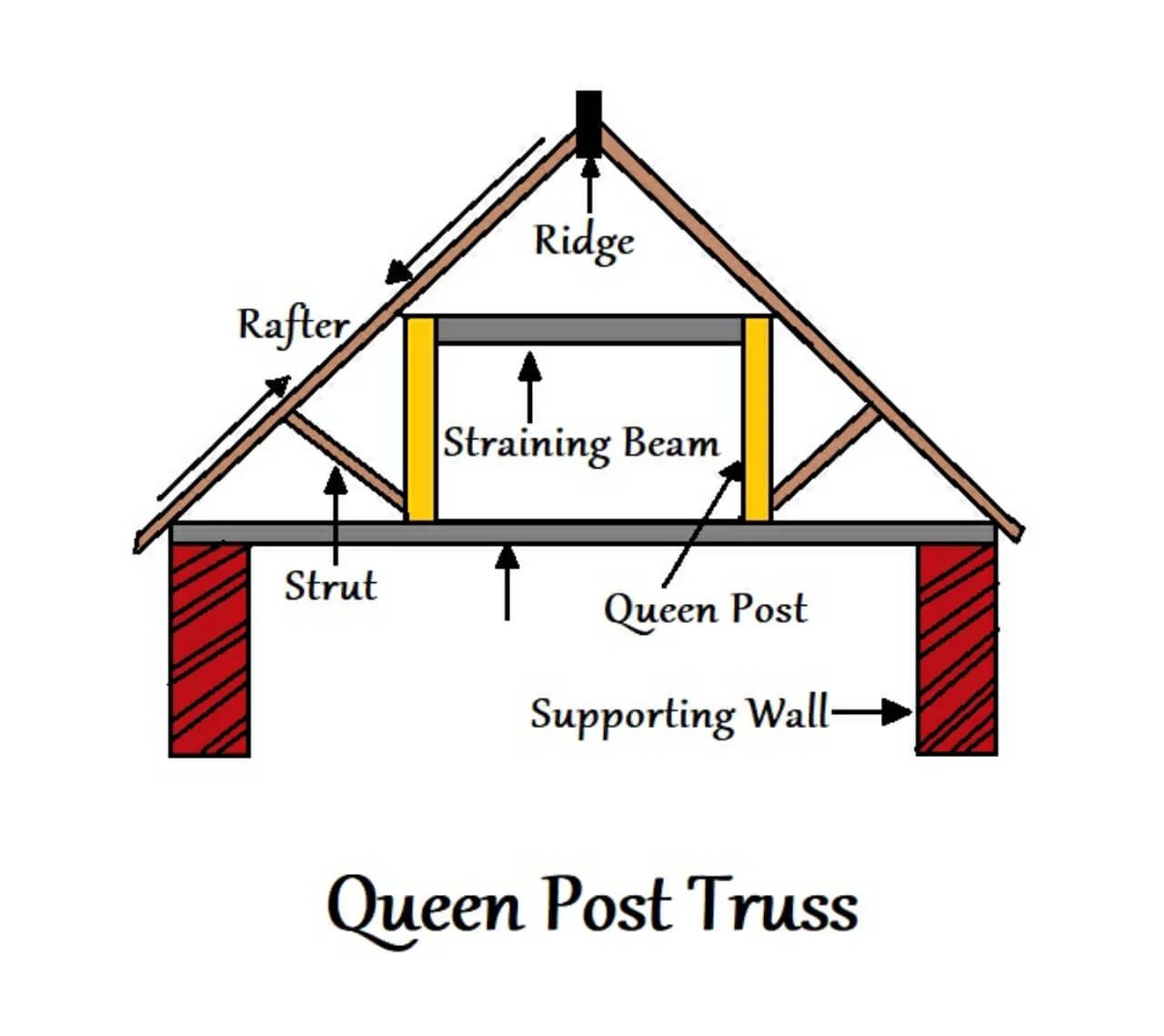

Queen post truss
Queen post truss is the type of truss roof which is associated with mostly wooden construction with two principal rafters and two vertical queen post with a restraining tie beam at the bottom and a staining beam at the top that is effluently used in modern restoration of architecture, bridge and provide the ornamental decorative look in construction of historic places in world, especially in United States and European ornamental structures.
In modern construction acquired the classical appearance and good looking roof covering design in world such as United States, northern australia and snow regions where got heavy rainfall etc.that is also feeling a classical appearance and beauty look.
Queen post trusses design are mostly popular in Providing queen post truss roof is a classical appearance in civil engineering to covering roof which is available in several different sizes and roof pitches and also these are one of the simplest trusses that is consists of two queen post, two principal rafters, struts, tie beam, straining beam and purlin which is support to roofs and provide the resistant to sustain the internal loading.
Queen post truss provide the effective design of roof covering in world and snow regions that is acquired good looking, classical appearance and widely used in modern construction due to these can be prefabricated and are less expensive than the some other form of roof support, that is also very strong and stable design in construction of buildings.
Queen post truss is essentially a triangulated system of straight interconnected structural elements for covering a design of roof and widely used in modern construction, industrial buildings, farm construction and effluent architectural design and bridge which is significantly used in world with good feeling and classical look .
Providing queen post truss roof is a classical appearance in civil engineering to covering roof which is available in several different sizes and roof pitches and also these are one of the simplest trusses that is consists of two queen post, two principal rafters, struts, tie beam, straining beam and purlin which is support to roofs and provide the resistant to sustain the internal loading.
Queen post truss is the type of truss roof which is differs from a King post truss in having two vertical members that is effluently kept in position of horizontal member through the upper ends of the Queen post, these type of truss are adopted for roof of span varying from 8 m to 12 metres and also a suitable strengthened provided for truss upto a span of 18 metres by using the a convenient combination of King post and Queen post truss.
In the queen post truss, generally the tops are connected by a horizontal member ,this is called as straining beam which is introduced on tie beam to counteract the thrust from compression member and two struts are adopted to join the each queen post to the principal rafters.
The queen post truss has benefits over a King post truss that is more effective and widely used due to span wider widths and it it frequently used in residential homes, public building and bridges.
Queen post truss is more popular than a King post support is that it provides more structural stability ,provide more space inside the room and make it easier to add a room at a later date.
This truss is design roof with beauty and unique style add to design of roof straight or decorative shapes with curve, and adopt a classical appearance in architectural craftsman.
Queen post truss details
Queen post truss is a consist mostly a tension member in truss in which can sustain long span opening in construction of roof truss than a King post truss, this type of truss is mostly tension member rather than the compression member, this is also effluent by providing the two central supporting post in design of constructing truss roof whereas King post truss uses one central supporting post.
When considering installing a queen post truss, it is important to discuss the plans with a qualified professionals to determine what problems need to be considered before beginning the project, the queen post trusses are used for spans over 30 feet and contain two perpendiculars to brace up the tie beam spanning the walls, truss for a 32 feet span,the same form is suitable upto about 42 feet span.
What is queen post truss roof
Regarding this, “what is queen post truss roof?”, queen post truss is the type of truss roof which is associated with mostly wooden construction with two principal rafters and two vertical queen post with a restraining tie beam at the bottom and a staining beam at the top that is effluently used in modern restoration of architecture, bridge and provide the ornamental decorative look in construction of historic places in world, especially in United States and European ornamental structures.
kept in position of horizontal member through the upper ends of the Queen post, these type of truss are adopted for roof of span varying from 8 m to 12 metres and also a suitable strengthened provided for truss upto a span of 18 metres by using the a convenient combination of King post and Queen post truss.
Providing queen post truss roof is a classical appearance in civil engineering to covering roof which is available in several different sizes and roof pitches and also these are one of the simplest trusses that is consists of two queen post, two principal rafters, struts, tie beam, straining beam and purlin which is support to roofs and provide the resistant to sustain the internal loading.
Queen post truss roof are commonly saw In historic homes in styles such as craftsman, Tudor, stick, gothic revival and queen anne were designed to built with ornamental trusses in United States.
These type of design of truss roofs are also saw in European styles architecture that are essentially associated with the gables roof for often display ornamental trusses.
Components of queen post truss
Queen post truss consist of following components –
● Two queen post – In design of queen post truss consist the two queen post which are the tension members for used to prevent the sagging of beam, this upper ends of the posts are kept in position by straining beam.
● Struts –
● Two principal rafters- principal rafters are used side by side with consist of uniformly equal spacing to support the purlins.
● Tie beam -tie beam is also called the dragon beam, tie beam is diagonal structure members which is support the lower end of a hip rafter to support the purlins.
● Straining beams- the staining beam is used in acquired the thrust from the principal rafters and also keeps the a straining sill is fixed on the tie beam.
● Straining sills- staining sills are mostly used part of design in queen post truss that is fixed on the tie beam and also fixed between the feet of queen post. These are used for reducing the thrusts from strut.
● Purlins- purlins are horizontal wooden members laid on principal rafters on wall to wall to support common rafters of a roof which is fixed with cleat.
Queen post truss design
When considering installing a queen post truss design, it is important to discuss the plans with a qualified professionals to determine what problems need to be considered before beginning the project, the queen post trusses are used for spans over 30 feet and contain two perpendiculars to brace up the tie beam spanning the walls, truss for a 32 feet span,the same form is suitable upto about 42 feet span.
Construct of design of queen post truss consist the necessary members to help the installation of its design with the support power of tie beam, principal rafters, queen post, strut, straining beam, straining sills, purlin, common rafters.
The principal rafters, straining beams, struts and straining sill are in react a compression behaviour and queen posts and tie beam react a tension behaviour.
A queen post is a tension member in a truss design that can consist the longer span opening than a King post truss , this is used two of queen post and also associated with still that is called still.
Design of queen post truss mostly used in bridge that is designed with consist two queen post has two uprights, placed about one third of the way from each end of the truss, thesr are joined across the top by a beam and provide a diagonal brace between the outer edges.
Queen post truss span
Queen post trusses are used for span is limited to the length in the range of 8 to 12 metre or 30 to 40 feet, which is effluently used in this range of span and widely used with classical appearance for 8 to 12 metres in span and sustained the roof stability and strength,these are not suitable for long span.
◆You Can Follow me on Facebook and
Subscribe our Youtube Channel
Advantages of queen post truss
● suitable strengthened provided for truss upto a span of 18 metres by using the a convenient combination of King post and Queen post truss.
● it provides more structural stability ,provide more space inside the room and make it easier to add a room at a later date.
● adopt a classical appearance in architectural craftsman
● queen post trusses are used for spans over 30 feet
● these are used to design a cost effective structure.
● Simple design.
● Well accepted and used design.
● Design of queen post truss provides more space inside a room, construct of this truss roof can add the usable area of a house and can make a easier to finish.
● Queen post truss is widely used in houses as well as in churches and other construction of buildings with required large open space.
● this type of design is also used in modern construction of buildings in exteriors architecture.
● mostly used in decorative purposes in gables in many styles of architecture.
● Queen post trusses design are mostly popular in world , these are commonly saw in historic homes in styles such as craftsman, Tudor, stick, gothic revival and queen anne were designed to built with ornamental trusses in United States.
● These type of design of truss also saw in European styles architecture that are essentially associated with the gables roof for often display ornamental trusses.
● Queen post trusses are also used as side rails.
Disadvantages of queen post truss
● Queen post truss is not suitable for longer span consist of greater than 40 feet.
● Poorer performance under the uniformly distributed loaded.
● Queen post truss roof is not mostly function in areas with extreme weather conditions, this is unsuitable in areas with heavy rainfall.
