The maximum span of 2×4 rafters without support is quite limited due to their relatively small size and load-bearing capacity. Typically, 2×4 rafters are not used for long spans in roofing applications. The maximum span for 2×4 rafters will depend on various factors, including the species and grade of the wood, the spacing of the rafters, the type of roof load (such as snow load, live load, and dead load), and local building codes. As a rough guideline: common Species and Grade of Lumber (e.g., Douglas Fir-Larch, Southern Pine): For 2×4 rafters spaced 16 inches on center (16″ o.c.), the maximum span is typically limited to around 5 to 6 feet, for 2×4 rafters spaced 24 inches on center (24″ o.c.), the maximum span is even shorter, usually around 4 to 5 feet.
A rafter is a structural component build of wood or steel that is used as part of a roof construction. Rafter runs from the ridge or hip of the roof to the wall plate of the external wall. Rafters are generally provide in series, side by side, providing a plateform to support roof decks and roof coverings.
In many countries such as in US, Canada United Kingdom roof rafter made of wood/ timber are much common to build a house. Many species of wood are used to provide timber which have much strength. Rafters are usually made of pine or cedar tree, for longer span rafters, building materials severals manufacturers have created Laminated veneer lumber (LVL) rafters that can be 2–5 times longer than typical wood rafter. In US, most wood rafters have maximum length of 20 feet.
Rafter spaced typically either 12, 16 or 24 inches apart in one of several industry -standard increments. The term clear span is distance between two end support, generally comes up a lot whether constructing a home, shed, or deck. Span refers to the distance a piece of dimensional lumber can cover before it needs to be supported by a foundation or support post.
◆You Can Follow me on Facebook and
Subscribe our Youtube Channel

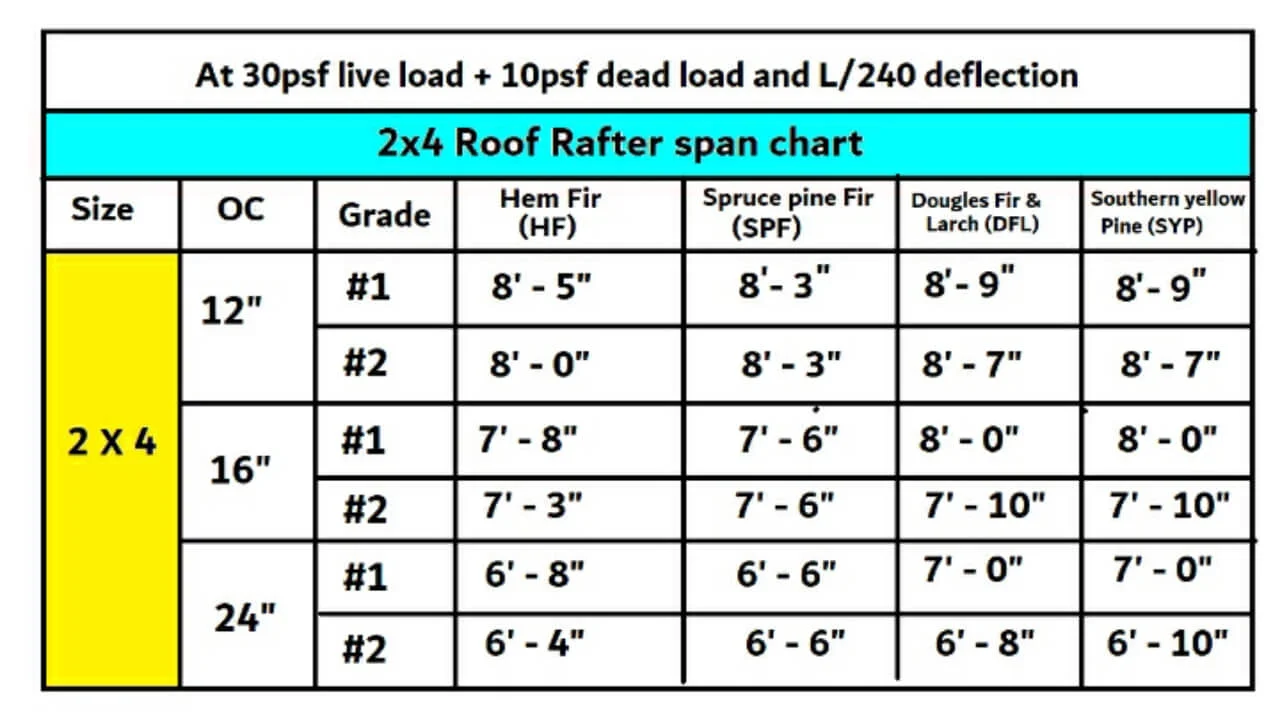

How far can a 2×4 rafter span without support
The span of roof rafter will depend on load condition, slope, wood species, grade of lumber, climatic condition, locality where you live, building codes and design of structure.
Depending on various factors, a #1 grade of Southern yellow pine (SYP) 2×4 roof rafter can span a maximum of 8′- 0” far apart at 16” spacing, 8′- 9” at 12” spacing, or 7′-0″ at 24″ spacing without support.
A #2 grade of Southern yellow pine (SYP) 2×4 roof rafter can span a maximum of 7′- 10” far apart at 16” spacing, 8′- 7” at 12” spacing, or 7′-10″ at 24″ spacing without support.
A #1 grade of Douglas Fir & Larch (DFL) 2×4 roof rafter can span a maximum of 8′- 0” far apart at 16” spacing, 8′- 9” at 12” spacing, or 7′-0″ at 24″ spacing without support.
A #2 grade of Douglas Fir & Larch (DFL) 2×4 roof rafter can span a maximum of 7′- 10” far apart at 16” spacing, 8′- 7” at 12” spacing, or 6′-8″ at 24″ spacing without support.
A #1 grade of Spruce/ pine Fir (SPF) 2×4 roof rafter can span a maximum of 7′- 6” far apart at 16” spacing, 8′- 3” at 12” spacing, or 6′-6″ at 24″ spacing without support.
A #2 grade of Spruce/ pine Fir (SPF) 2×4 roof rafter can span a maximum of 7′- 6” far apart at 16” spacing, 8′- 3” at 12” spacing, or 6′-6″ at 24″ spacing without support.
A #1 grade of Hem Fir (HF) 2×4 roof rafter can span a maximum of 7′- 8” far apart at 16” spacing, 8′- 5” at 12” spacing, or 6′-8″ at 24″ spacing without support.
A #2 grade of Hem Fir (HF) 2×4 roof rafter can span a maximum of 7′- 3” far apart at 16” spacing, 8′- 0” at 12” spacing, or 6′-4″ at 24″ spacing without support.
What is the maximum span of a 2×8 floor joist?
What is the maximum span of a 2×12 floor joist?
What is the maximum span of a 2×10 floor joist?
What size board do i need to span 20′, 14′, 12′, 10′, and 16 feet
How far can a 2×10 ceiling joist span without support
Conclusions:-
A #1 grade of Southern yellow pine (SYP) 2×4 roof rafter can span a maximum of 8′- 0” far apart at 16” OC. For the same size rafter, grade and spacing, SPF can allow to maximum span of 7′-6″.
