How many floor joists for 10′, 12′, 14′, 16′, 18′, 20′, & 24 foot deck | how many joists for 12 foot deck | how many joists for 16 foot deck | how many joists for 20 foot deck | how to figure how many joists do i need for a deck | how many joists for 10 foot deck
There are different depth of floor joist are used in floor construction such as 2×6, 2×8, 2×10 and 2×12, made of different species of wood (southern yellow pine & Douglas fir) and different grade such as grade – 1, grade – 2, grade – 3. Southern yellow pine is strongest species of wood that can span more distance compared to other species of wood. Grade 1 lumber have higher strength than other grade Lumber due to fewer knots.
Floor joists are typically a horizontal structural member that runs across an open space of building on supporting wall or studs. Their function is similar as beams, except floor joists are supported by wall, foundations, or beams framing.
Floor joists usually run between walls or rafters to support a ceiling or floor. They transfer the dead load of the subfloor and floor finishes and live load of people, furniture and furnishings to beams, walls, headers, or foundation walls. It is like the skeleton/ framing of a building that supports the load which the floor is built to bear. Joists are technically beams that typically spans relatively short distances compared to beams and are made of wood, steel, or engineered wood or lumber.
Standard floor size is 2×8 (2 by 8). Others typical floor joist size are 2×6 (2-by-6), 2×8 (2-by-8), 2×10 (2-by-10), 2×12 (2-by-12) and even greater. Most standard, floor joist spacing is 16 inches apart on center, but this can vary depending on building codes and the requirements of the structure. So, 12 inches, 19.2 inches and 24 inches apart on centre are also used.
How do i figure out how many floor joists i need
To figure out number of floor joists you would need, measure the length of subfloor in feet. Multiply the subfloor length in feet by 12 to convert in inches. Then divide it by spacing i.e 24″ or 16″, 19.2″, or 12″ and add 1 in result to get total number of floor joists you needed.
The simple formula to find number of floor joists are following: floor joists count = ((subfloor length × 12)/16) + 1. This equation will help you to figure how many floor joists you needed. For example, if your subfloor is 10 feet long, you will need atleast 9 floor joists. i.e (10×12)/ 16) +1 = 7.5 +1 = 8.5, round it as 9.

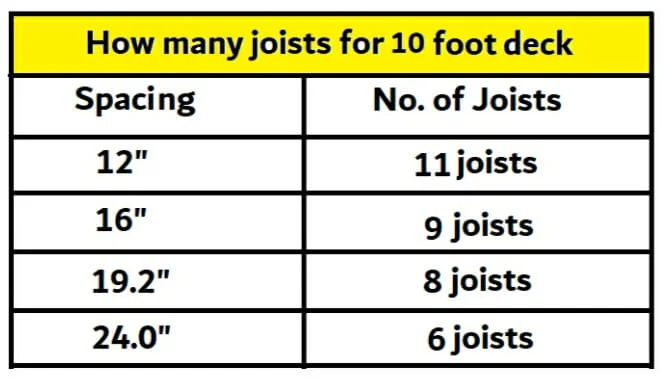

How many joists for 10 foot deck
A 10 foot long deck with joists 16″ spaced on centre will require 9 joists. Use the formula for joists count = ((subfloor length × 12)/16) + 1, and put the span of your deck: joists count = ((10 × 12)/16) + 1 = (120/16) + 1 = 7.5 + 1 = 8.5, round up as 9. Thus, you would need atleast 9 joists for a 10 foot deck.

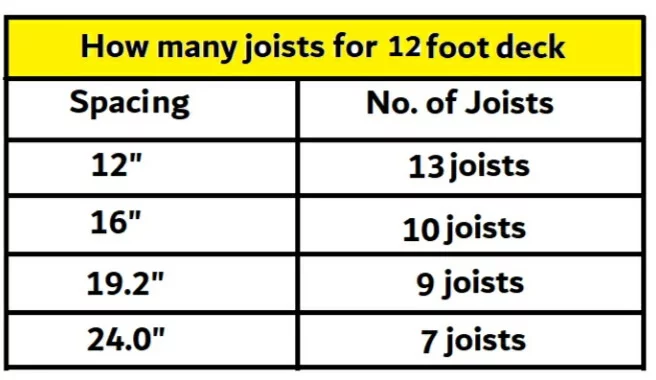

How many joists for 12 foot deck
A 12 foot long deck with joists 16″ spaced on centre will require 10 joists. Use the formula for joists count = ((subfloor length × 12)/16) + 1, and put the span of your deck: joists count = ((12 × 12)/16) + 1 = (144/16) + 1 = 9 + 1 = 10. Thus, you would need atleast 10 joists for a 12 foot deck.

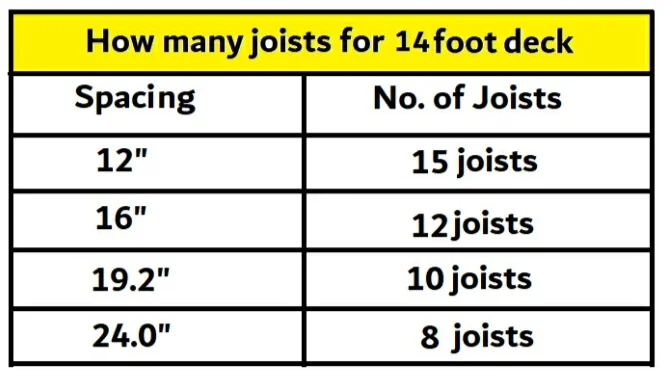

How many joists for 14 foot deck
A 14 foot long deck with joists 16″ spaced on centre will require 12 joists. Use the formula for joists count = ((subfloor length × 12)/16) + 1, and put the span of your deck: joists count = ((14 × 12)/16) + 1 = (168/16) + 1 = 10.5 + 1 = 11.5, round as 12. Thus, you would need atleast 12 joists for a 14 foot deck.

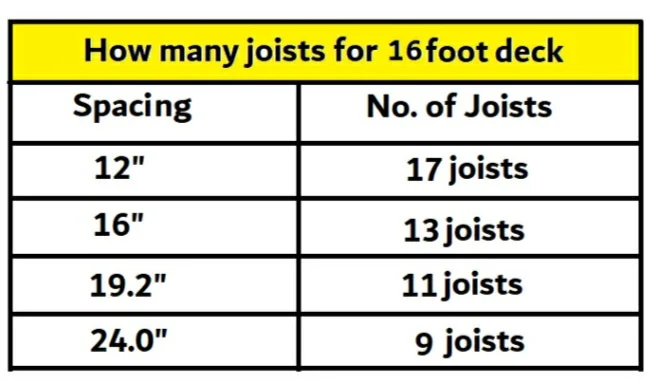

How many joists for 16 foot deck
A 16 foot long deck with joists 16″ spaced on centre will require 13 joists. Use the formula for joists count = ((subfloor length × 12)/16) + 1, and put the span of your deck: joists count = ((16 × 12)/16) + 1 = (192/16) + 1 = 12 + 1 = 13. Thus, you would need atleast 13 joists for a 16 foot deck.
◆You Can Follow me on Facebook and
Subscribe our Youtube Channel

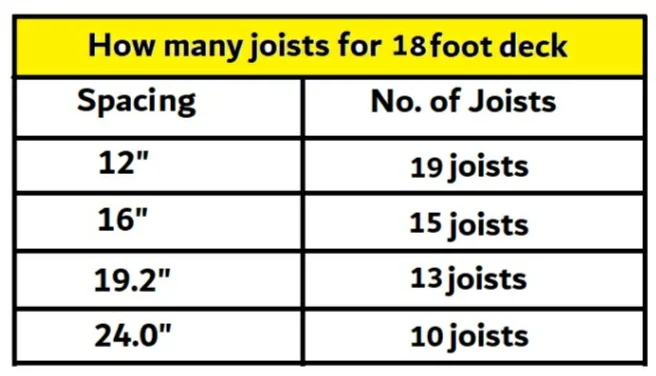

How many joists for 18 foot deck
A 18 foot long deck with joists 16″ spaced on centre will require 15 joists. Use the formula for joists count = ((subfloor length × 12)/16) + 1, and put the span of your deck: joists count = ((18 × 12)/16) + 1 = (216/16) + 1 = 13.5 + 1 = 14.5, round as 15. Thus, you would need atleast 15 joists for a 18 foot deck.

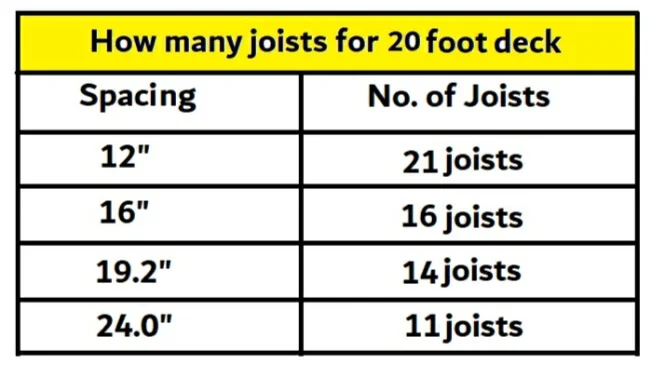

How many joists for 20 foot deck
A 20 foot long deck with joists 16″ spaced on centre will require 16 joists. Use the formula for joists count = ((subfloor length × 12)/16) + 1, and put the span of your deck: joists count = ((20 × 12)/16) + 1 = (240/16) + 1 = 15 + 1 = 16. Thus, you would need atleast 16 joists for a 20 foot deck.

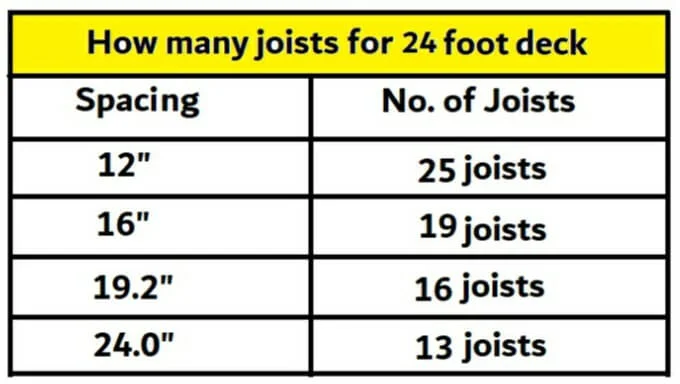

How many joists for 24 foot deck
A 24 foot long deck with joists 16″ spaced on centre will require 19 joists. Use the formula for joists count = ((subfloor length × 12)/16) + 1, and put the span of your deck: joists count = ((24 × 12)/16) + 1 = (288/16) + 1 = 18 + 1 = 19. Thus, you would need atleast 19 joists for a 24 foot deck.
How many joists do i need for a 10×10 deck
If your deck is 10×10 foot with joists which spaced 16 inches on center will require 9 joists. Use the formula for joists count = ((subfloor length × 12)/16) + 1, and put the span of your deck: joists count = ((10 × 12)/16) + 1 = (120/16) + 1 = 7.5 + 1 = 8.5, round up as 9. Thus, you would need atleast 9 joists for a 10×10 deck.
How many joists do i need for a 12×12 deck
If your deck is 12×12 foot with joists which spaced 16 inches on center will require 10 joists. Use the formula for joists count = ((subfloor length × 12)/16) + 1, and put the span of your deck: joists count = ((12 × 12)/16) + 1 = (144/16) + 1 = 9 + 1 = 10. Thus, you would need atleast 10 joists for a 12×12 deck.
How many joists do i need for a 8×8 deck
If your deck is 8×8 foot with joists which spaced 16 inches on center will require 7 joists. Use the formula for floor joists count = ((subfloor length × 12)/16) + 1, and put the span of your deck: joists count = ((8 × 12)/16) + 1 = (96/16) + 1 = 6 + 1 = 7. Thus, you would need atleast 7 floor joists for a 8×8 deck.
How many joists do i need for a 16×16 deck
If your deck is 16×16 foot with joists which spaced 16 inches on center will require 13 joists. Use the formula for joists count = ((subfloor length × 12)/16) + 1, and put the span of your deck: joists count = ((16 × 12)/16) + 1 = (192/16) + 1 = 12 + 1 = 13. Thus, you would need atleast 13 joists for a 16×16 deck.
How far can a 2×6, 2×8, 2×10 and 2×12 floor joist span
How far can you span a 2×6, 2×8, 2×10 and 2×12 floor joist
I- joist: sizes, span and cost per foot
What size lumber for 20′, 16′, 18′, 10′, 12′ & 22 feet span
How much weight can a 2×6 joist hanger hold
Conclusions:
A 10 foot long deck with joists 16″ spaced on centre will require 9 joists. To figure out number of floor joists you would need, use the formula for joists count = ((subfloor length × 12)/16) + 1.
