How much steel required for 1000 sq ft house

How much steel required for 1000 sq ft house, hi guys in this article we know about quantity of steel is required for 1000 square feet house. Actual Steel calculation is based on as per design but if design is not given then Steel calculation is based on Thumb Rule on experience basis & how much Steel used in 1000 square feet house.

💐—- WATCH THIS VIDEO—💐

How much is steel required for 1000 sq ft house is based on different type of criteria

1) type of structure (Load Bearing/Framed)

2) Purpose of structure (Load depends on the utility)

3) Type of dia of Bar

4) Size height of column and length of beam (in terms of height, as requirement varies according to construction i.e. whether horizontal or vertical. )

5) Most important is foundation type(depends on soil bearing conditions)

For general residential low rise building of ground floor house we have to calculate Steel quantity. We use different types of Thumb Rule for steel calculation all type of RCC structure footing, column, beam & RCC slab.

How much steel required for 1000 sq ft house
How much steel required for 1000 sq ft house

Now taking various Thumb Rule for Steel quantity calculation for 1000 square feet house

1) thumb rule for steel in rcc slab is 80 kg/cubic meter of wet volume of concrete

2) thumb rule for steel in beam is 120 kg/cubic meter of wet volume of concrete

3) thumb rule for steel in column is 160 kg/cubic meter of wet volume of concrete

4) thumb rule for steel in footing is 40 kg/cubic meter of wet volume of concrete

5) thumb rule for steel in rcc structure is 120 kg/cubic meter of all calculated wet volume of concrete.

6) thumb rule for steel in rcc structure is 3.5 Kg to 4 kg/ sq ft of built up area.

If we take last thumb rule point (6), thumb rule for steel in rcc structure is 3.5 Kg to 4 kg/ sq ft of built up area.

If built area is 2000 sq ft house we require steel quantity

= 3.5 × 2000 = 7000 Kg

= 4 × 2000 = 8000 kg

7000 Kg to 8000 Kg of Steel quantity is required for construction of 2000 square feet house.

If built area is 1200 sq ft house, we require steel quantity

= 3.5 × 1200 = 4200 Kg

= 4 × 1200 = 4800 kg

4200 Kg to 4800 Kg of Steel quantity is required for construction of 1200 square feet house.

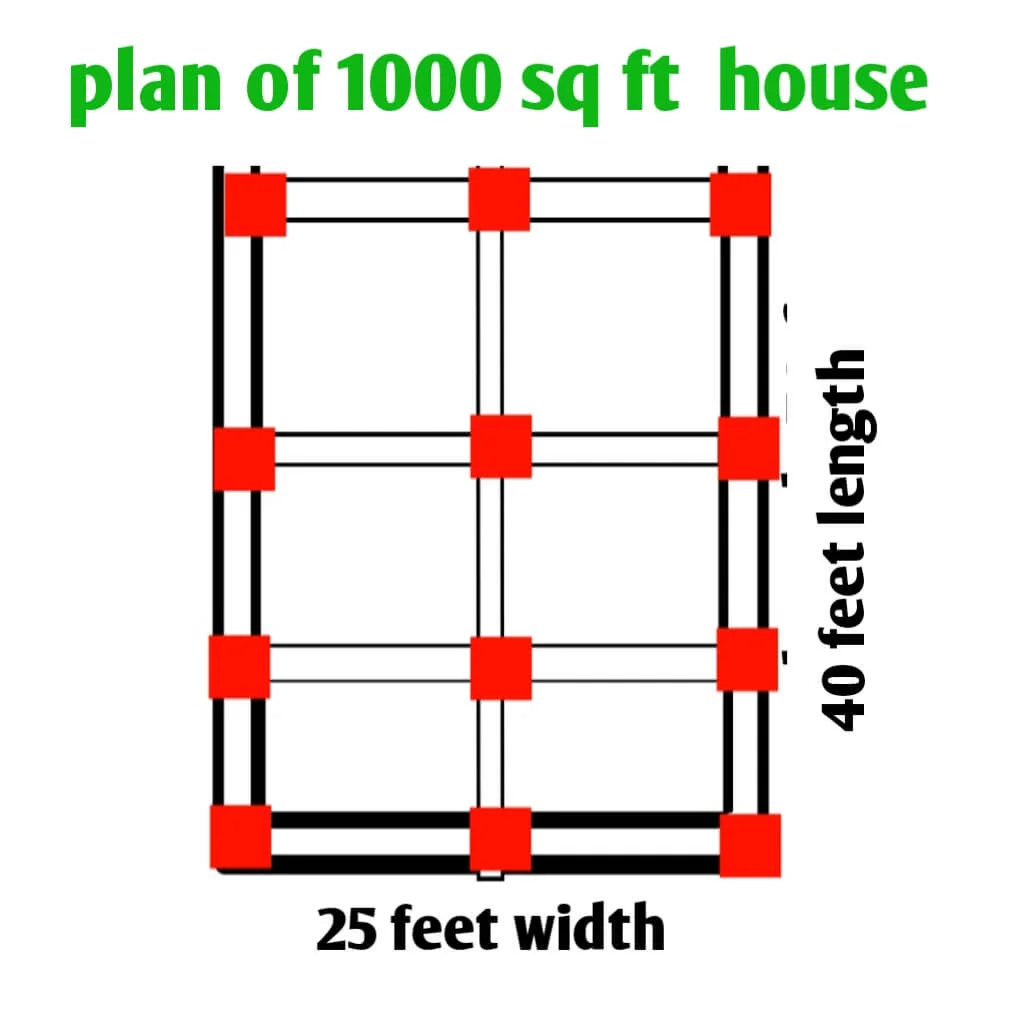

Plan of 1000 sq ft house
How much steel required for 1000 sq ft house

How much steel required for 1000 square feet house ?

For the construction of residential building of ground floor we have RCC structure like footing, column, beam and slab. Taking one rough design of 1000 square feet house having different dimension of rcc structure like footing, column, beam and slab are following:

1) footing size = 1500 mm × 1500mm × 300 mm

Length of footing = 1500 mm

Width of footing = 1500 mm

Height of footing = 300 mm

Depth of earth exacavation = 1500 mm

Concrete size in footing = 1200mm×1200mm×300mm

No of footing = 12

Wet volume of concrete in all 12 no of footing = 1.2 m × 1.2 m × 0.3 m × 12 = 5.184 m3

thumb rule for steel in footing is 40 kg/cubic meter of wet volume of concrete

Steel quantity = 5.184 × 40 = 207 Kg

207 Kg of Steel required in footing RCC structure of 1000 square feet of house

2) column size = 300 mm × 400 mm

No of column = 12

Height above dpc = 3000 mm

Height above rcc slab = 900 mm

Depth of earth exacavation = 1500 mm

Total height of column = 5400 mm

Wet volume of concrete for all 12 column

= 0.3 × 0.4× 5.4 × 12 = 7.776 m3

thumb rule for steel in column is 160 kg/cubic meter of wet volume of concrete

Steel quantity = 7.776 × 160 = 1244 kg

1244 Kg of Steel required in column RCC structure of 1000 square feet of house.

3) plinth beam size = 300mm × 300 mm

Width of beam = 300 mm

Depth of beam = 300 mm

Overall length of all beam = 220 ft = 66000 mm

Wet volume of concrete = 0.3 × 0.3 × 66 = 5.94 m3

thumb rule for steel in beam is 120 kg/cubic meter of wet volume of concrete

Steel quantity = 5.94 × 120 = 713 kg

713 Kg of Steel required in plinth beam RCC structure of 1000 square feet of house.

4) door beam size for external wall = 225mm × 150 mm

Overall length for external beam = 130 ft = 39000 mm

Steel = 0.225 × 0.15 × 39 × 120 = 158 Kg

Door beam size for internal wall = 125 mm × 150 mm

Overall length for internal beam = 90 ft = 27000 mm

Steel = 0.125 × 0.15 × 27 × 120 = 61 Kg

Steel for door beam = 158 + 61 = 219 kg

219 Kg of Steel required in door beam of 1000 square feet of house

5) roof wall beam size for external wall = 225 mm × 200 mm

Overall length for external beam = 130 ft = 39000 mm

Steel = 0.225 × 0.2 × 39 × 120 = 211 Kg

Roof wall beam size for internal wall = 125 mm × 200 mm

Overall length for internal wall beam = 90 ft = 27000 mm

Steel = 0.125 × 0.2 × 27 × 120 = 81 Kg

Steel for roof beam = 211 + 81 = 292 kg

292 Kg of Steel required in roof wall beam of 1000 square feet of house

6) rcc roof slab = 40′ × 25’×6″

Length of slab = 40 feet

Width of slab = 25 feet

Thickness of slab = 6 inch = 0.5 feet

Volume = 40′ × 25’× 0.5′ = 500 cubic feet

1 m3 = 35.3147 cu ft

Volume = 500/35.3147 = 14.158 m3

thumb rule for steel in rcc slab is 80 kg/cubic meter of wet volume of concrete

Steel = 14.158 × 80 = 1133 Kg

1133 Kg of Steel required in rcc roof slab of 1000 square feet of house

Now Total weight of Steel required for 1000 square feet house

Footing = 207 kg

Column = 1244 kg

Plinth beam = 713 kg

Door beam = 219 kg

Roof beam = 292 kg

Roof slab = 1133 kg

Total weight of steel = 3808 Kg

3808 Kg of steel ( 207 kg in footing, 1244 kg in column, 713 kg in plinth beam, 219 kg in door beam, 292 kg in roof beam & 1133 Kg in rcc roof slab) are required for construction of 1000 square feet house of low rise residential building of ground floor.

How much steel required for 1 sq.feet area:- using M20 grade of concrete in rcc load bearing structure like column, beam, floor and roof slab casting, 1 sq.feet area of house construction, RCC structure require average 3.8kgs of steel.

How much steel required for 1000 sq.feet area:- using M20 grade of concrete in rcc load bearing structure like column, beam, floor and roof slab casting, 1 sq.feet area of house construction, RCC structure require average 3808kgs of steel.

Steel required per square feet:- Steel required in house depends on building types, residential, commercial, industrial type of a structure, support condition and framing of building, using thumb rule for RCC structure, generally Steel required 3.5 kg to 4 kg per square feet of built up area of house for residential building and in case of institutional, multistorey, commercial and industrial building, it will require about 5 kg to 5.5 kg per square feet.

Steel required in slab per square feet: Steel required in roof slab depends on types of building structure residential, commercial, industrial, multistorey, institutional, slab type, support condition, live load, framing of building and design method adopted, generally Steel required in slab is ranging between 0.7 kg to 1.1 kg per square feet, in case of normal residential building it will require 0.7 to 0.9 kg/ sq ft, in case of advance architectural residential building it will require about 0.8 – 0.9kg/ sq ft, in case of commercial and industrial building it will require about 0.8 – 1.0kg/ sq ft and for institutional and multi storey building it will require about 0.9 – 1.1 kg per square feet for slab.

Steel required for 400 square feet house:- it’s depend on type of structure, framing of building, load condition and support condition, using Thumb Rule, generally approx 1400 – 1600 kg or 1.4 – 1.6 MT of Steel are required for 400 square feet residential house, if it is for commercial building, then it will require about 2000 – 2250 kg or 1.74 – 2.0 MT of steel.

Steel required for 500 square feet house:- using Thumb Rule, generally approx 1750 – 2000 kg or 1.75 – 2.0 MT of Steel are required for 500 square feet residential house, if it is for commercial building, then it will require about 2500 – 2750 kg or 2.5 – 2.75 MT of steel.

Steel required for 600 square feet house:- using Thumb Rule, generally approx 2100 – 2400 kg or 2.1 – 2.4 MT of Steel are required for 600 square feet residential house, if it is for commercial building, then it will require about 3000 – 3300 kg or 3.0 – 3.3 MT of steel.

Steel required for 800 square feet house:- using Thumb Rule, generally approx 2800 – 3200 kg or 2.8 – 3.2 MT of Steel are required for 800 square feet residential house, if it is for commercial building, then it will require about 4000 – 4400 kg or 4.0 – 4.4 MT of steel.

Steel required for 1200 square feet house:- using Thumb Rule, generally approx 4200 – 4800 kg or 4.2 – 4.8 MT of Steel are required for 1200 square feet residential house, if it is for commercial building, then it will require about 6000 – 6600 kg or 6.0 – 6.6 MT of steel.

Steel required for 1500 square feet house:- using Thumb Rule, generally approx 5250 – 6000 kg or 5.25 – 6.0 MT of Steel are required for 1500 square feet residential house, if it is for commercial building, then it will require about 7500 – 8250 kg or 7.5 – 8.25 MT of steel.

Steel required for 1600 square feet house:- using Thumb Rule, generally approx 5600 – 6400 kg or 5.6 – 6.4 MT of Steel are required for 1600 square feet residential house, if it is for commercial building, then it will require about 8000 – 8800 kg or 8.0 – 8.8 MT of steel.

Steel required for 1800 square feet house:- using Thumb Rule, generally approx 6300 – 7200 kg or 6.3 – 7.2 MT of Steel are required for 1800 square feet residential house, if it is for commercial building, then it will require about 9000 – 9900 kg or 9.0 – 9.9 MT of steel.

Steel required for 2000 square feet house:- using Thumb Rule, generally approx 7000 – 8000 kg or 7.0 – 8.0 MT of Steel are required for 2000 square feet residential house, if it is for commercial building, then it will require about 10000 – 11000 kg or 10.0 – 11.0 MT of steel.

Steel required for 2400 square feet house:- using Thumb Rule, generally approx 8400 – 9600 kg or 8.4 – 9.6 MT of Steel are required for 2400 square feet residential house, if it is for commercial building, then it will require about 12000 – 13200 kg or 12.0 – 13.2 MT of steel.

Steel required for 2500 square feet house:- using Thumb Rule, generally approx 8750 – 10000 kg or 8.75 – 10.0 MT of Steel are required for 2500 square feet residential house, if it is for commercial building, then it will require about 12500 – 13750 kg or 12.5 – 13.75 MT of steel.

Steel required for 3000 square feet house:- using Thumb Rule, generally approx 10500 – 12000 kg or 10.5 – 12.0 MT of Steel are required for 3000 square feet residential house, if it is for commercial building, then it will require about 15000 – 16500 kg or 15.0 – 16.5 MT of steel.

This this is a general guidelines and actual quantity of steel may vary for special design,thanks.
