Weight of rectangular hollow section steel | RHS weight calculator, in this topic we know about how to calculate weight of rectangular hollow section steel and its steel formula, we know that Steel bar have various shapes like rectangular bar, square bar ,pentagonal ,hexagonal octagonal steel bar.
Rectangular Steel tube per meter calculation mostly used in engineeringand construction.
Weight of rectangular steel tubing (RHS) is calculated by steel weight formula that is multiplication of unit weight of steel and its volume and also steel weight is calculated by help of various RHS weight calculator/ steel weight calculator.
We know that rectangular tubing Steel is type of ms bar and their is still density is 7850 kg/m3. And there is questions arises in our mind how calculate steel weight. For this solution we have require two measuring quantity first is unit weight of steel and second one is volume of steel
◆ what is admixture of concrete and its type
manufacturing process
Rectangular hollow section steel and square hollow section steel is same and does not very to greatly ,flat steel plate is heat and molded to change shape and edge of refined and Readied for welding.
|
|
| Rectangular tube bar |
High tensile strength hollow section of Steel which is used widely in various industries for automotive, machinery, furniture and construction which section comes in various shape and size and finishes most common among them include rectangular hollow section (RHS) and square hollow section (SHS).
Size of rectangular hollow section (RHS)
Size of rectangular hollow section comes in wide range their minimum lateral dimension is about 26 mm × 13 mm and their maximum lateral dimension is about 400 mm × 200 mm and their thickness is also have wide range that is minimum thickness is about 0.8 mm and maximum thickness is about 12 mm and length of rectangular hollow section have also wide range comes in minimum of 4 metre and maximum 12 metre.
Size of square hollow section (SHS)
Size of square hollow section (SHS) comes in wide range their minimum lateral dimension is about 12 mm × 12 mm and their maximum lateral dimension is about 300 mm × 300 mm and their thickness is also have wide range that is minimum thickness is about 0.8 mm and maximum thickness is about 12 mm and length of square hollow section have also wide range comes in minimum of 4 metre and maximum 12 metre.
Uses of rectangular hollow section
Rectangular hollow section of Steel widely used and it is mainly used in construction machinery manufacturing, Steel construction project, building, ship building, steel structure, electrical engineering ,power plant, agriculture and chemical machinery ,glass curtain, car chassis, airport and so on .
●How to calculate material required for roof cast of 1800 square feet building
●How to calculate material required for roof cast of 1000 square feet building
Weight of rectangular Steel tubing (RHS)
●1) given dimension:-
We have steel weight formula = Unit Weight of Steel × volume of Steel
Density of steel bar=7850kg/m3

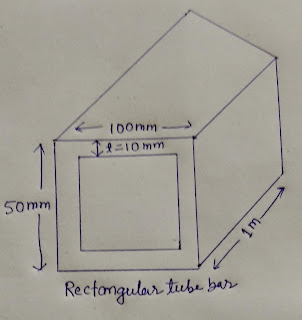

Side length of surface A = 100mm = 0.1m, side length of surface B = 50mm = 0.05m, thickness t = 10mm = 0.01m, length of rectangular tube Steel bar such as L= 1m
|
|
| Rectangular tube bar |
How calculate steel weight
● calculation:- to determine the weight of rectangular hollow section we use RHS weight calculator, as we know that weight of Steel bar = volume of Steel × density of steel
Weight = Volume × density
Vt = total volume of Steel
Va = volume of surface A
Vb = volume of surface B
Hence Vt = Va + Vb
Vt = (Area of A×L) 2+ (Area of B×L)2
Vt = (0.1×0.01×1)2 m3 +{(0.05-0.01-0.01)0.01×1}2 m3
Note:- both surface of volume is multiply by 2
Vt = 0.002 m3 +(0.03×0.02) m3
Vt= 0.002 m3+0.0006 m3
Hence Vt = 0.0026 m3
Now weight = volume × density
Weight = 0.0026m3 × 7850kg/m3
Hence weight = 20.41 kg Ans.
