introduction:- hi guys in this article you know about ms angle|ms angle weight and T section of steel. ms angle are L -shaped structural Steel represented by dimension of sides and thickness. Tension part of L shaped structure is known as web of ms angle and compression part of L shaped structure is known as flange of structural Steel.
Uses of ms angle
ms angle are used in various construction process like construction of buildings ,power plant, water plant, in mechanical engineering, in civil engineering and fabrication activities.and it is also used in formation of agriculture equipment, formation of ship equipment , used in automobile industry ,making body of buses truck and heavy machine.
ms angle specification
Dimension of ms angle is represented by two sides that is there lateral dimension which are equal in width and their third dimension is represented by their thickness.
ms angle specification are made according to requirement. There are various limited company of ms angle manufacturer in India like Tata Steel, Jindal Rolling Mills Limited, Shreeji Steel Corporation ,Mahaveer Steel ,Kapil steel and so many more. The biggest supplier and manufacturer of ms angle Tata Steel and Jindal Rolling Mills Limited.
Some people want to know what is the price of ms angle in India. ms angle rate per kg in India ranging between rs 38 to 50 per kg. ms angle rate per kg in India minimum price is 38 rupees and ms angle rate per kg in India maximum price is 50 rupees.
ms angle iron various specification their minimum size ranging between 20 mm and maximum size about 200mm. and also ms angle iron is made according to requirement.
ms angle specification is minimum 20×20×3 mm and maximum is about 200×200×20 mm
ms angle weight chart
Suppliers and manufacturers of ms angle in India make weight chart for ms angle having ms angle HSN code for transporting and export. ms angle sizes ranging between 20mm to 200mm that is there lateral dimension and their thickness is arranging between 3mm -20 mm. So there is wide range of ms angle size used in construction.
ms angle weight chart
Size weight (kg/m)
60×60×5. 4.5
60×60×6. 5.4
60×60×8. 7.0
65×65×5. 4.9
65×65×6. 5.8
65×65×8. 7.7
65×65×10. 9.4
ms angle weight
ms angle weight is calculated and based on their specification higher the specification than higher the weight of ms angle and lower the specification lower the weight of ms angle.
MS angle weight is also calculated with the help of ms angle weight calculator. ms angle weight is multiplication of unit weight of steel and its volume.
Unit Weight of steel is about 7850 kg/m3 and their volume is calculated multiplication of area and its length. And now we have ms angle weight formula that is derived like this
ms angle weight = steel density × volume
Weight = density × volume
Weight = density × area × length
Hence ms angle weight formula is equal to
Weight = density × area × length
What is t – beam
●T-beam:- T-beam used in civil work and building construction technology, t -beam is load bearing structure of the reinforcement of concrete ,wood and metal.
top side of t- beam cross section is known as flange which are in horizontal direction resting compressive stress and second one is web vertical section known as web side rasist the shear stress.
|
|

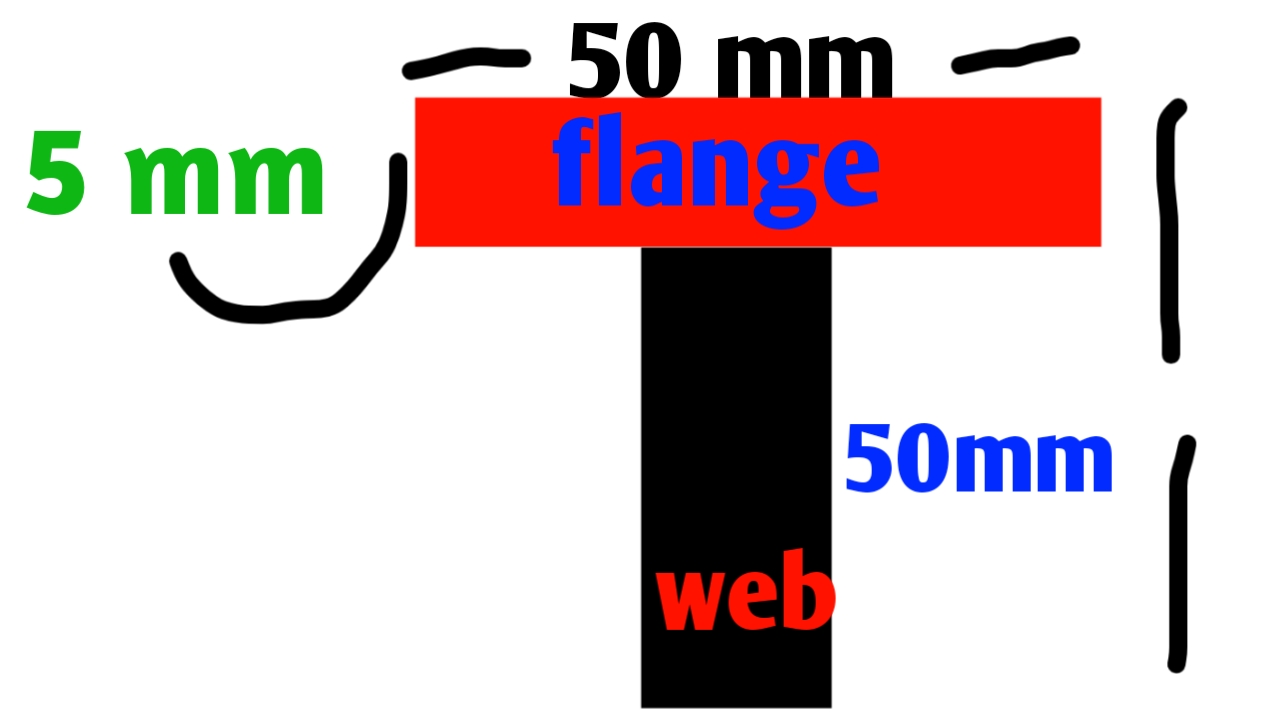

| T-beam steel |
how to calculate weight of T-beam Steel
●Given dimensions:-
For T-shape steel
f (w)=50mm
t =5mm
W (w)=50mm
t=5 mm
Length =1m
|
|
| T-beam steel |
●Calculation:- we know that weight of Steel is multiplication of both volume of Steel and density of steel
Weight=volume×density
Density of steel=7850kg/m3
Volume =V1 +V2
Vt =(50×5) mm2×1m +(50-5)5mm2×1m
Vt=250mm2×1m+225mm2×1m
Vt=475/(1000)2×1m3
Vt =0.000475m3
Now weight=volume×density
W= 0.000475m3×7850kg/m3
Weight=3.728 kg Ans.
■ what is admixture of concrete and its type
● How to calculate weight of different shape of Steel:-
●How to calculate material required for roof cast of 1800 square feet building
●How to calculate material required for roof cast of 1000 square feet building
●How to calculate weight of Steel bar of different size
What is l beam Steel
L-beam steel:– L-shape steel is leg shape steel also called as angle Steel used in various industries, it’s mainly function is framing and can be moulded in different shape of brackets, strim and reinforcement.
|
|

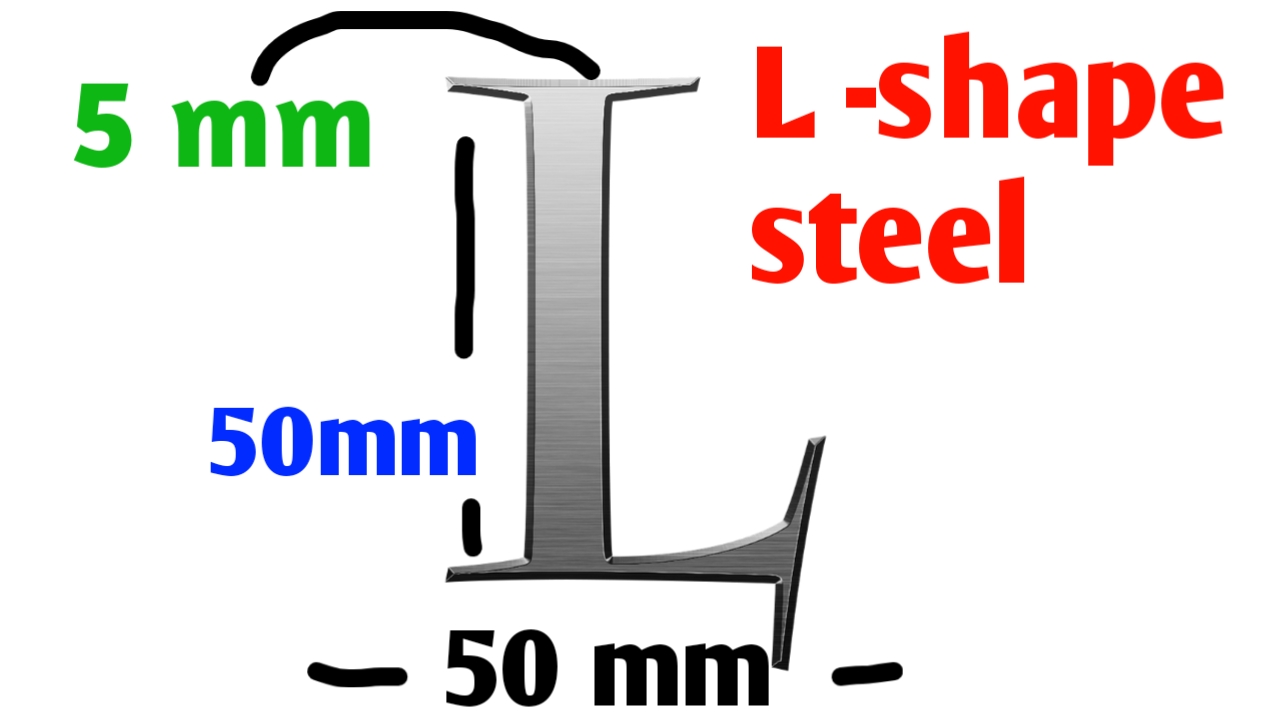

| L-shape steel |
●calculation:- we know that weight of steel is multiplication of both total volume of Steel and density of steel
● given dimension:-
Density of steel =7850kg/m3
Length =1m
A(w) =50mm
t =5mm
B( w)= 50mm
t =5mm
Weight = volume×density
|
|
| L-shape steel |
Vt =V (A)+ V (B)
Vt =(50×5) mm2×1m +(50-5)5mm2×1m
Vt=250mm2×1m+225mm2×1m
Vt=475/(1000)2×1m3
Vt =0.000475m3
Now weight=volume×density
W= 0.000475m3×7850kg/m3
Weight=3.728 kg Ans.
sphare or ball shape Steel
ball and Sphare shaped Steel used in a spherical shaped formation like bearing, ball ,screw , valve and etc.
● Calculate the weight of sphare shape steel
|
|
| Sphere shape steel |
●Given dimensions:-
Density =7850 kg/m3
Diameter =1 foot
Radius =(1/2)’
|
|
| Ball shape steel |
Weight =volume×density
Radius=diameter/2
1foot= 12″
Radius=12″/2
Radius=6 inch
Volume=4/3πr3
=4/3×3.14r3
=12.566/3×(6″)3
=4.1887×(6×0.0254m)3
=4.1887×(0.1524m)3
=4.1887×0.00354 m3
Volume=0.0148m3
Weight=volume×density
Weight=0.0148m3×7850kg/m3
Weight=116kg Ans.
