Steel weight and formula for unit weight of steel calculation and calculator for steel weight. hi guys in this article we know about unit weight of steel,steel weight calculation formula and how to calculate steel weight per metre or per foot
As we know that Steel are used in formation of structural member like column ,beam, footing and slab and etc of building .you know that different size of Steel bar supply by supplier having length 12 metre, how we calculate total length of Steel bar in kilogram.
Unit weight of steel:- Unit Weight of steel is defined as the ratio of weight of Steel to volume of steel, Unit Weight of steel is around 7850kg/m3 or 78.5kN/m3.
There are different steel weight calculator for the the steel weight calculation of various size of Steel bar 8mm, 6mm, 10mm, 12mm and so more. And calculator for steel weight based on unit weight of steel and volume of round Steel bar. By this article you should calculate following
1) steel weight bar
2) formula for steel weight
3) d2/162 derivation
4) different size of Steel bar
5) 8mm steel weight per meter
6) 10 mm steel weight
7) 12mm steel weight
8) 16mm steel bar weight
9) 20mm steel weight
Unit weight of steel/ rod/rebar/steel bar/reinforcement bar
In india, in all states, Maharashtra, Telangana Karnataka, Tamilnadu, West Bengal, and major cities Delhi, Mumbai, Kolkata, Hyderabad, Chennai, Bengaluru, there is a different size of Steel bar manufactured by various company and supply and distribution of steel bar/tmt bar/rebar/steel rod size like 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, etc.
Unit Weight of steel is defined as ratio of weight of steel to its unit volume, weight of Steel measured in kilogram (kg) and its volume is measured in cubic metre (m3), then its unit weight = unit mass/unit volume, represented as W = m/V, where W is Steel unit weights, m for mass and V for volume, it is also known as specific weight of steel or density of steel and their SI unit is kilogram per cubic metre (kg/m3). Steel is most used element in civil engineering for structural construction, after knowing the Steel Unit Weight, it is easy to calculate amount of Steel required for projects.
Generally, when its meaured in kg/m3, its unit weight in kg per cubic meter (kg/m3) is around 7850kg, when its meaured in g/cm3, its unit weight in gram per cubic centimeter (g/cm3) is around 7.850 gram, when its meaured in kN/m3, its unit weight in kilo Newton per cubic meter (kN/m3) is around 78.50kN, when its meaured in lbs/in3, its unit weight in pounds per cubic inch (lbs/in3) is around 290.74 pounds and when its meaured in lbs/ft3, its unit weight in pounds per cubic foot (lbs/ft3) is around 490.74 pounds.
The value of Unit Weight of Steel in different units
Steel Unit Weight measured in different units like kg/m3, kN/m3, g/cm3, lbs/in3 and lbs/ft3, the value of Steel Unit Weight is around 7850kg/m3, when its measured in Kilogram per cubic metre, 78.50kN/m3, when its measured in kilonewton per cubic metre, 7.850g/cm3, when its measured in gram per cubic centimetre, 290.74lbs/in3, when its measured in pounds per cubic inch and 490.059lbs/ft3, when its measured in Pounds per cubic foot.
Unit Weight of Steel formula
In india, Steel unit weight is calculated in kilogram per cubic metre (kg/m3) and kilogram per foot kg/ft3, in US imperial system and EN members of states, it is measured in Pounds per cubic foot (lbs/ft3) and Pounds per cubic inch (lbs/in3), there are two formula D^2L/162 and D^2L/533 are used for unit weight of Steel per unit length, D^2L/162, this formula are used for calculate its weight in kg per metre (kg/m) and D^2L/533, this formula are used for calculate its weight in kg per foot (kg/ft).
For example, calculate Steel Unit Weight of 10mm Steel bar in Kilogram per metre and kilogram per foot.
10mm steel bar weight in kg per meter, given diameter of Steel bar 10mm, length of Steel is 1 metre, then put all value in D^2L/162 formula, weight = (10×10×1)/162 = 0.617kg/m3, this is 10mm Steel bar weight in kg per meter.
10mm steel bar weight in kg per foot, given diameter of Steel bar 10mm, length of Steel is 1 foot, then put all value in D^2L/533 formula, weight = (10×10×1)/533 = 0.188kg/ft3, this is 10mm Steel bar weight in kg per foot.
How to calculate Steel rod weight
As we know there is a different shape of Steel rod available in market round/circular solid bar, square shaped steel rod, hexagonal bar, etc, steel is most important construction material used in building construction, now question is arises that “how to calculate Steel rod weight”, after knowing the Steel rod weight, it is easy to calculate amount of Steel required for any projects like industrial building construction, high rise building, low rise building, Bridge, dams, schools, hospitals, commercial buildings, etc.
To calculate the weight of Steel bar or rod we are using some formula, which are very helpful for site engineer, supervisor and common people.
To calculate the weight of Steel bar or rod following formula has are used
● for round/circular solid bar – Diamm2 × 0.006165, when it measured in kilogram per metre (kg/m).
● for round/circular solid bar – Diamm2 × 0.004143, when it measured in pounds per foot (lbs/ft).
● for hexagonal solid bar – sizemm2 × 0.006798, when it measured in kilogram per metre (kg/m).
● for hexagonal solid bar – sizemm2 × 0.006165, when it measured in pounds per foot (lbs/ft).
● for square shaped solid bar – sizemm2 × 0.00785, when it measured in kilogram per metre (kg/m).
● for square shaped solid bar – sizemm2 × 0.00527, when it measured in pounds per foot (lbs/ft).
Unit Weight of 6mm Steel bar/ rod/reinforcement
This is very thin steel bar sized, not used for any structural work, it is only used as wire bar, it is too thin, that known as pencil rod.
Round/circular Steel bar measured in different units, unit weight of 6mm Steel bar measured in Kilogram per meter (kg/m) is around 0.22kg, when its measured in Kilogram per foot (kg/ft), then their weight should be approx 0.067kg, when its measured in pounds per foot (lbs/ft), then their weight should be approx 0.1478 pounds and when its measured in pounds per inch (lbs/inch), their weight should be approx 0.0123 pounds.
Unit Weight of 8mm Steel bar/ rod/reinforcement bar/rebar
This is thin steel bar sized, it is used as distribution bar in roof casting and lintel beam, it is not suitable for RCC work of beam and column.
Round/circular Steel bar measured in different units, unit weight of 8mm Steel bar/rod/rebar measured in Kilogram per meter (kg/m) is around 0.390kg, when its measured in Kilogram per foot (kg/ft), then their weight should be approx 0.12kg, when its measured in pounds per foot (lbs/ft), then their weight should be approx 0.262 pounds and when its measured in pounds per inch (lbs/inch), their weight should be approx 0.0218 pounds.
Unit Weight of 10mm Steel bar/ rod/reinforcement bar/rebar
This is medium steel bar sized, it is used as main bar or distribution bar in roof casting and lintel beam, it is not suitable for RCC work of beam and column.
Round/circular Steel bar measured in different units, unit weight of 10mm Steel bar/rod/rebar measured in Kilogram per meter (kg/m) is around 0.617kg, when its measured in Kilogram per foot (kg/ft), then their weight should be approx 0.188kg, when its measured in pounds per foot (lbs/ft), then their weight should be approx 0.414 pounds and when its measured in pounds per inch (lbs/inch), their weight should be approx 0.0345 pounds.
Unit Weight of 12mm Steel bar/ rod/reinforcement bar/rebar
This is steel bar sized, it is used as distribution bar in roof casting and lintel beam, it is minimum bar size required for RCC work of beam and column.
Round/circular Steel bar measured in different units, unit weight of 12mm Steel bar/rod/rebar measured in Kilogram per meter (kg/m) is around 0.889kg, when its measured in Kilogram per foot (kg/ft), then their weight should be approx 0.271kg, when its measured in pounds per foot (lbs/ft), then their weight should be approx 0.597 pounds and when its measured in pounds per inch (lbs/inch), their weight should be approx 0.04978 pounds.
Unit Weight of 16mm Steel bar/ rod/reinforcement bar/rebar
16mm Steel bar used in all type of RCC structural work of design structure of beam, column, Foundation and slab.
Round/circular Steel bar measured in different units, unit weight of 16mm Steel bar/rod/rebar measured in Kilogram per meter (kg/m) is around 1.58kg, when its measured in Kilogram per foot (kg/ft), then their weight should be approx 0.482kg, when its measured in pounds per foot (lbs/ft), then their weight should be approx 1.061 pounds and when its measured in pounds per inch (lbs/inch), their weight should be approx 0.0884 pounds.
Unit Weight of 20mm Steel bar/ rod/reinforcement bar/rebar
20mm Steel bar used in all type of RCC structural work of design structure of beam, column, Foundation and slab.
Round/circular Steel bar measured in different units, unit weight of 20mm Steel bar/rod/rebar measured in Kilogram per meter (kg/m) is around 2.469kg, when its measured in Kilogram per foot (kg/ft), then their weight should be approx 0.752kg, when its measured in pounds per foot (lbs/ft), then their weight should be approx 1.659 pounds and when its measured in pounds per inch (lbs/inch), their weight should be approx 0.138 pounds.
Unit Weight of 25mm Steel bar/ rod/reinforcement bar/rebar
25mm Steel bar used in all type of RCC structural work of design structure of beam, column, Foundation and slab.
Round/circular Steel bar measured in different units, unit weight of 25mm Steel bar/rod/rebar measured in Kilogram per meter (kg/m) is around 3.858kg, when its measured in Kilogram per foot (kg/ft), then their weight should be approx 1.176kg, when its measured in pounds per foot (lbs/ft), then their weight should be approx 2.592 pounds and when its measured in pounds per inch (lbs/inch), their weight should be approx 0.216 pounds.
Unit Weight of 32mm Steel bar/ rod/reinforcement bar/rebar
32mm Steel bar used in all type of RCC structural work of design structure of beam, column, Foundation and slab.
Round/circular Steel bar measured in different units, unit weight of 32mm Steel bar/rod/rebar measured in Kilogram per meter (kg/m) is around 6.32kg, when its measured in Kilogram per foot (kg/ft), then their weight should be approx 1.926kg, when its measured in pounds per foot (lbs/ft), then their weight should be approx 4.25 pounds and when its measured in pounds per inch (lbs/inch), their weight should be approx 0.354 pounds.
What is admixture of concrete and it types
Why need calculation of unit weight of steel rods
You know that Steel bar have length 12 metre of different size like 8 mm, 10 mm, 12 mm, 16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 45 mm and 50 mm size. so we have to convert length of Steel bar in weight in kilogram.

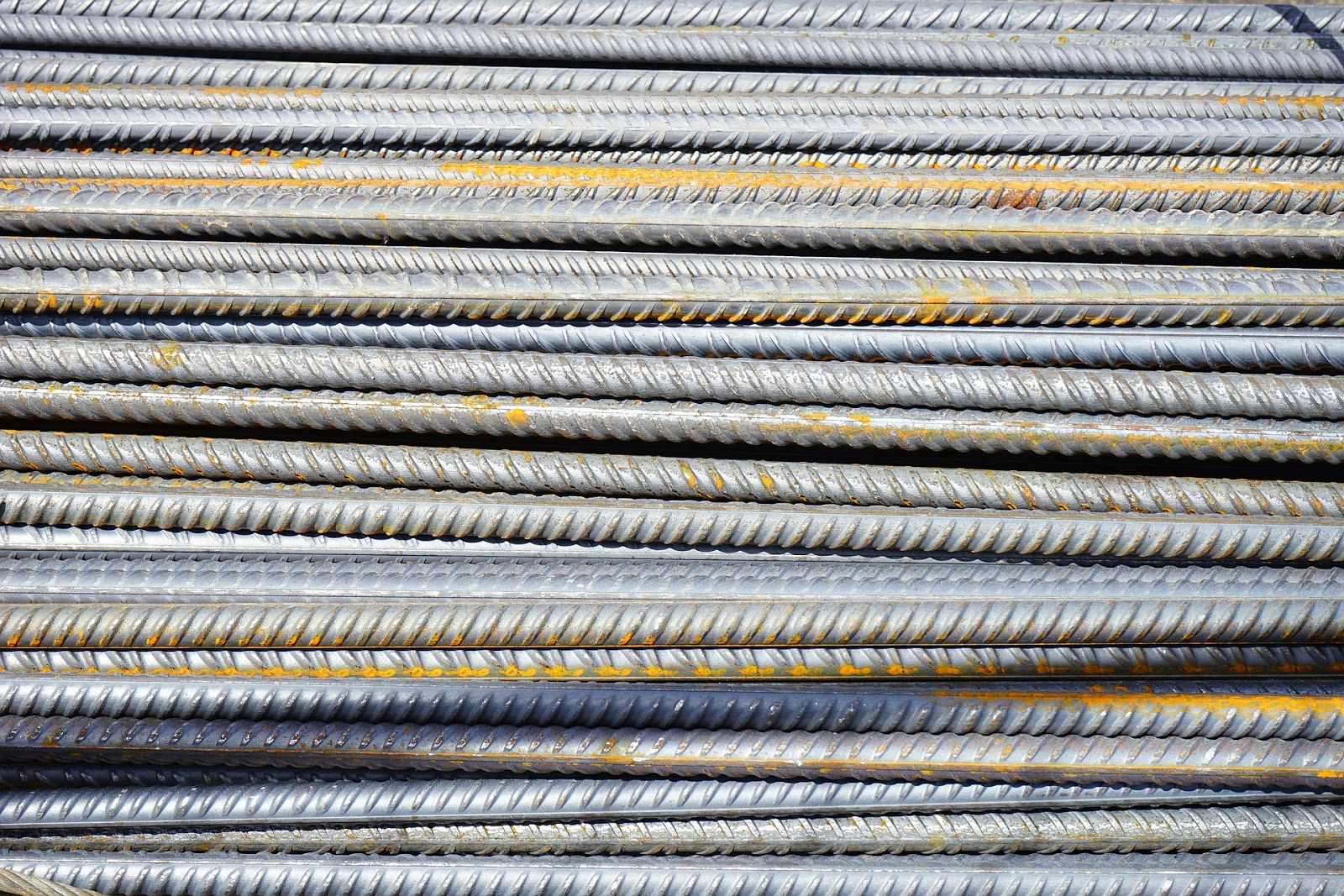

Steel bar |

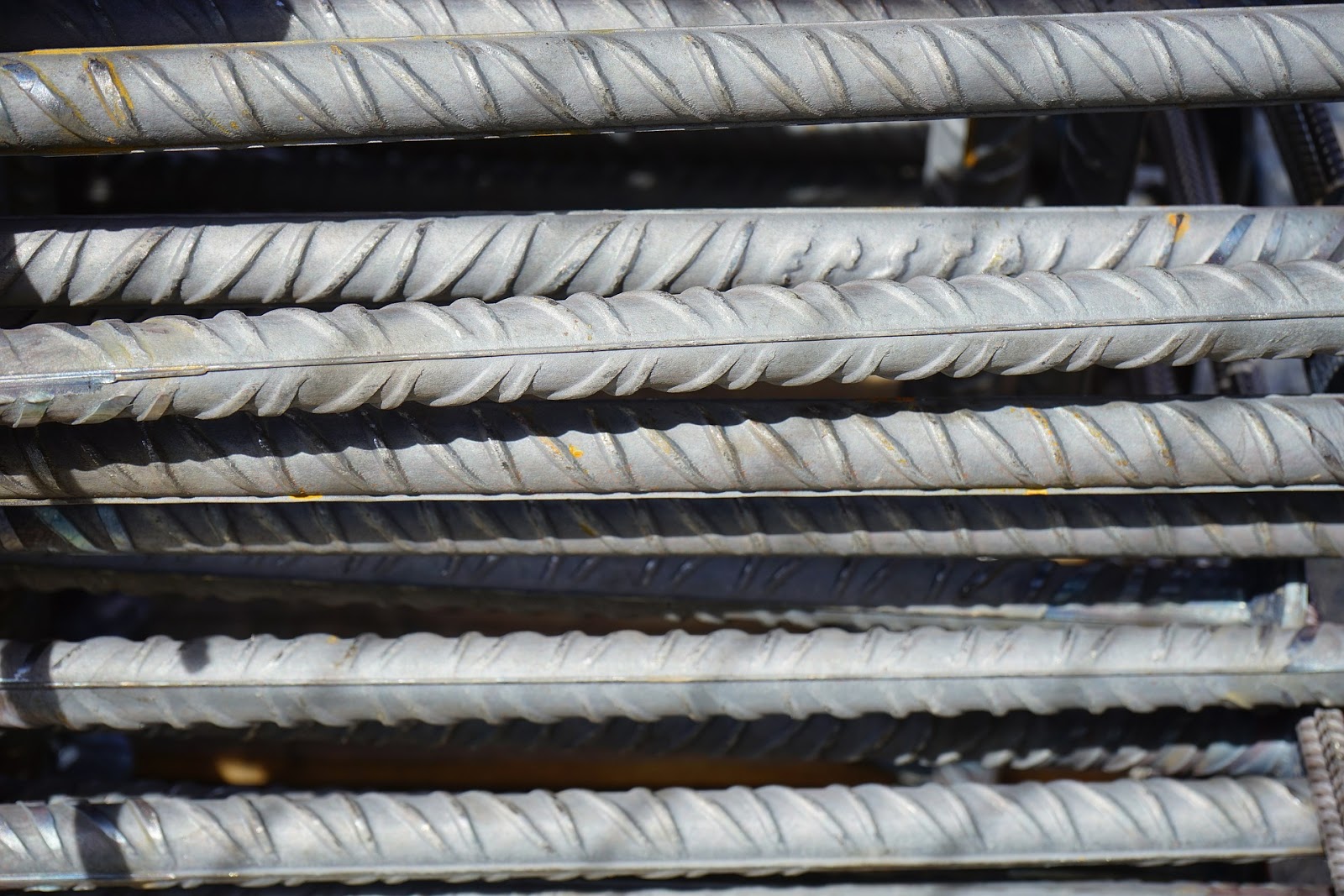

Steel bar |
uses of steel bar
you know that Steel bar used in building construction work and civil engineering like formation of dam, culvert ,Bridge formation, pillar formation etc.
Steel bar |
size of Steel bar
There are different size of Steel bar like 6mm, 8mm, 10mm, 12mm, 16mm ,20mm 25mm and so more where 6,8,10,12,16 diameter of round bar and question asking one bundle have how many bar and number of Steel bar in one bundle are following
Dia. Number Length
8mm—–10nos—–12m
10mm—-7nos——–12m
12mm—-5nos ——–12m
16mm——3nos—–12m
20mm——2nos——12m
25mm——1nos——12m
32mm——1nos——12m
40mm——-1nos—–12m
45mm——1nos——12m
50mm——1nos——12m
Steel weight calculation formula |
how to calculate unit weight of steel rods
unit weight of steel rods is calculated in two unit 1) steel weight per meter in kg and 2) steel weight per foot in Kg. there is a unique formula and easy calculation of different size of Steel bar having length 12 metres. Formula for steel weight is following:
Steel weight calculation formula is two types -steel weight per metre in kg and steel weight per foot in kg
Formula for steel weight per metre in kg is following:
steel weight =(Dia)*2/162×Length
W =( D)*2 L/162 kg
And formula for steel weight per foot in kg is following
steel weight =(Dia)*2/533×Length
W =( D)*2 L/533 kg
1 foot steel mass/ weight:- 1 foot of 6mm steel weight around is 0.067 kgs, 8mm is 0.120 kgs, 10mm is 0.188 kgs, 12mm is 0.270 kgs, 16mm is 0.480 kgs, 20mm is 0.751 kgs, 25mm is 1.174 kgs and 32mm is 1.925 kgs.
Formula for Steel weight per metre or per foot in kg is used for calculation of Unit Weight of Steel. For example unit weight of 8 mm steel per meter or per foot in kg –
8 mm steel weight per meter = (8×8)/162 kg/m
Unit weight of 8mm steel = 0.395 kg/m
Unit weight of 8 mm steel = (8×8)/533 kg/ft
Unit weight of 8 mm steel = 0.12 kg/ft
Unit weight of 8mm Steel per meter is 0.395 kg/m and per foot is 0.12 kg/foot
●How to calculate material required for roof cast of 1800 square feet building
●How to calculate material required for roof cast of 1000 square feet build
d2/162 formula derivation for steel unit weight per meter
we have to calculate unit weight of Steel rods in Kilogram per metre and we know that unit weight of steel bar is 7850 kg/m3. Its means 7850 kg is steel weight of 1 cubic metre.
Weight=volume of steel × steel density
Weight= cross sectional area×Length×densit
W =πD*2/4×L×density W=weight of steel π=3.14 D= diameter of Steel bar in mm L= length of Steel bar =1m Density=7850kg/m3
Putting all the value we get
Weight=3.14×Dmm*2/4×1m×7850kg/m3
Now we have to to convert millimetre square into metre square
1mm*2 = 1/1000m×1/1000m =1/1000000m*2 ( * square)
So weight =3.14×D m2/4000000×1m×7850kg/m3
Weight =D*2 ×26649/4000000 kg
Weight= D*2×0.006162 kg
It can be written as follow
Weight= D*2/1/0.006162 kg
When we divide 1/0.006162 we get 162 so
Weight =D*2 ×L/162 kg/m
Steel unit weight formula is
Weight =D*2 ×L/162 kg/m
d2/533 formula derivation for steel unit weight per foot
Weight=Volume×density
W=πD*2/4×L×density
W=3.14×Dmm*2/4×1ft×222kg/ft3
1mm*2. =1/304.80×304.80 ft*2
W=(3.14×Dft×1ft/4×304.80×304.80)×222kg/ft3
W = D*2 ×0.001878 kg/foot
Weight=D*2/1/0.001878 kg/foot
Weight =D*2/533 ×L kg/ft
This formula is used for steel weight calculation per foot.
Steel weight per foot:- weight of steel per foot for 6mm is 0.067 kgs, 8mm is 0.120 kgs, 10mm is 0.188 kgs, 12mm is 0.270 kgs, 16mm is 0.480 kgs, 20mm is 0.751 kgs, 25mm is 1.174 kgs and 32mm is 1.925 kgs
8mm steel weight per meter
● find the 8 mm steel weight per meter and length 12 metre and 10 number of Steel in one bundle:-
8mm steel bar |
● weight =D2×L/162
1) 8 mm steel weight per meter
Weight=8×8×1÷162=0.39kg
2) 8 mm steel weight for 12m
W=8×8×12÷162=4.74kg
3) 8 mm steel weight for 1bundle
=8×8×12×10÷162=47.407kg
0.39 kg is Unit weight of 8 mm steel per metre,4.74 kg is for 12 meter and 47.407 kg is for 1 bundle 8 mm steel.
10 mm steel rods weight per meter
● how to calculate weight of 10 mm size Steel bar having 12 metre length and 7 number of Steel in one bundle:-
10mm steel bar |
●weight calculation:-
1) 10 mm steel rods weight for 1m =10×10×1÷162=0.617 kg
2) 10 mm steel rods weight for 12m W=10×10×12÷162=7.407kg
3) 10 mm steel rod weight for 1bundle =10×10×12×7÷162=51.85kg
0.617 kg is Unit weight of 10 mm steel per metre,7.407 kg is for 12 meter and 51.85 kg is for 1 bundle 10 mm steel.
12mm steel bar weight per meter
● how to calculate 12mm steel bar weight having length 12 metre and 5 number of steel bar in one bundle:-
● weight calculation:-
1) 12mm steel bar weight for 1m =12×12×1÷162=0.889kg
2) 12mm steel bar weight for 12m =12×12×12÷162=10.667 kg
3) 12mm steel bar weight for1bundle
=12×12×12×5÷162=53.333kg
0.889 kg is Unit weight of 12 mm steel per metre,10.667 kg is for 12 meter and 53.34 kg is for 1 bundle 8 mm steel.
16mm steel bar weight
● how to calculate weight of size of 16 mm Steel bar having 12 m length and 3 number of steel bar in one bundle
● weight calculation:-
1) 16mm steel bar weight for 1m W=16×16×1÷162=1.58kg
2) 16mm steel bar weight for 12m W=16×16×12÷162=18.96kg
3) 16mm steel bar weight for 1 bundle
=16×16×12×3÷162=56.889kg
1.58 kg is Unit weight of 16 mm steel per metre,18.96 kg is for 12 meter and 56.889 kg is for 1 bundle 16 mm steel.
20mm steel weight
● how to calculate weight of size of 20 mm Steel bar having length 12 metre and 2 number of steel bar in one bundle:-
● weight calculation:-
1) 20mm steel weight for 1m W =20×20×1÷162=2.469kg
2) 20mm steel weight for 12m W=20×20×12÷162=29.629kg
3) 20mm steel weight for 1 bundle =20×20×12×2÷162=59.259kg
2.469 kg is Unit weight of 20 mm steel per metre,29.629 kg is for 12 meter and 59.259 kg is for 1 bundle 20 mm steel.
25mm steel rod weight
● how to calculate weight of Steel bar of size 25 mm having length 12 metre:-
● weight calculation:-
1) 25mm steel rod weight for 1m W=25×25×1÷162=3.858kg
2) 25mm steel rod weight for 12m W=25×25×12÷162=46.296kg
32mm steel rod weight
● how to calculate weight of 32 mm size of Steel bar having length 12 metre:-
● weight calculation:-
1) for 1m W=32×32×1÷162=6.32kg
2) for 12m W=32×32×12÷162=75.85kg
40mm steel rod weight
●Example 8:-● how to calculate weight of Steel bar size of 40 mm having length 12 metre:-
● weight calculation:-
1) for 1m W=40×40×1÷162=9.876kg
2) for 12 m W=40×40×12÷162=118.518kg
●Example 9
● how to calculate weight of Steel bar of size 45 mm having length 12 metre
● weight calculation:-
1) for 1m W=45×45×1÷162=12.5kg
2) for 12m W= 45×45×12÷162=150kg
●Example 10
● how to calculate weight of Steel bar size 50 mm having length 12 metre
● weight calculation:-
1) for 1m W =50×50×1÷162=15.432kg
2) for 12m W=50×50×12÷162=185.185kg
●How to calculate weight of different size of Steel bar in Kilogram per foot (Kg/foot)
● in foot calculation and unit weight of steel in kg/ft
formula of weight =D*2/533×L
Kg/Foot
●Note:-
D= diameter of Steel bar in millimetre
L= length of Steel bar in foot=39 foot
Density= 222 kg/ft3
d2/533 derivation
Weight=Volume×density
W=πD*2/4×L×density
W=3.14×Dmm*2/4×1ft×222kg/ft3
1mm*2. =1/304.80×304.80 ft*2
W=(3.14×Dft×1ft/4×304.80×304.80)×222kg/ft3
W = D*2 ×0.001878 kg/foot
Weight=D*2/1/0.001878 kg/foot
Weight =D*2/533 ×L kg/ft
●Example 1:-
● how to calculate weight of Steel bar of 8 mm size having length 39 foot and 10 number of steel bar in one bundle-
● weight calculation:-
1) for 1foot
W=8×8×1÷533=0.12 kg
2) for 39 ft W=8×8×39÷533=4.68kg
3) for 1 bundle W= 8×8×39×10÷533=46.80 kg
●Example2
● how to calculate weight of Steel bar having size 10 mm and 39 feet long having 7 number of steel bar in one bundle
●solve:-
1) for 1foot W=10×10×1÷533=0.1876kg
2) for 39 feet W=10×10×39÷533=7.317kg
3)for 1bundle W=10×10×39×7÷533=51.219kg
●Example3
● how to calculate weight of Steel bar having size 12 mm and 39 feet long and 5 number of steel bar in one bundle:-
● solve:-
1) For 1foot W=12×12×1÷533=0.270kg
2) For 39 feet W= 12×12×39÷533=10.53 kg
3) For 1 bundle W=12×12×39×5÷533=52.68kg
●Example 4
● how to calculate weight of Steel bar 16 mm size having length 39 feet and 3 number of steel bar present in one bundle
●solve:-
1) for 1foot W=16×16×1÷533=0.80kg
2) for 39 feet W=16×16×39÷533=18.73kg
3) for 1bundle W=16×16×39×3÷533=56.195kg
●Example5
● how to calculate the weight of Steel bar size 20 mm having length 39 feet and 2 piece of Steel bar in one bundle
●Solve :-
1) for 1foot W=20×20×1÷533=0.75 kg
2) for 39 feet W=20×20×39÷533=29.268kg
3) for 1bundle W=20×20×39×2÷533=58.536kg
●Now your turn:- any quiry , questions about this topics calculation of different size of Steel bar, please 🙂🙂comment share and ask questions, your questions are welcome 🙏in this blog
● thanks for joining us🙂🙂
