● Quantity of cement sand and aggregate for 2400 square feet roof slab and calculate construction cost of RCC slab 2400 square feetand what is cost per square feet concrete slab in India
quantity of cement sand and aggregate for 2400 square feet slab ,for the roof cast of 2400 square feet building roof slab, you have require Steel bar ,sand, cement and aggregate
how we calculate quantity of cement, sand, Steel bar and aggregate required ,you know that for the casting of roof slab we used M20 mix concrete. Quantity of cement sand and aggregate for 2400 square feet slab
How to calculate material required for roof cast of 1800 square feet building
●How to calculate material required for roof cast of 1000 square feet building
●How to calculate weight of Steel bar of different size
●How to calculate weight of t -beam, l -beam and Sphare shaped Steel
#How to calculate weight of mild steel plate
#How to calculate weight of rectangular shaped Steel bar
#How to calculate weight of rectangular tube shaped Steel bar
#How to calculate weight of square tube shaped Steel bar
#How to calculate weight of square shaped Steel bar
Quantity of cement sand and aggregate for 2400 sqft RCC roof slab
In M20 mix concrete M is stand for mix and numerical figure 20 is stand for characteristic of compressive strength 20N/mm2 after mixing and casting of roof slab, quantity of material in slab formation it calculated by M20 mix in which ratio of sand cement and aggregate is 1: 1.5 :3
💐—- WATCH THIS VIDEO—-💐
●M-mix Ratio :-1 : 1.5 : 3 in which one part is cement 1. 5 part is sand and 3 part is aggregate

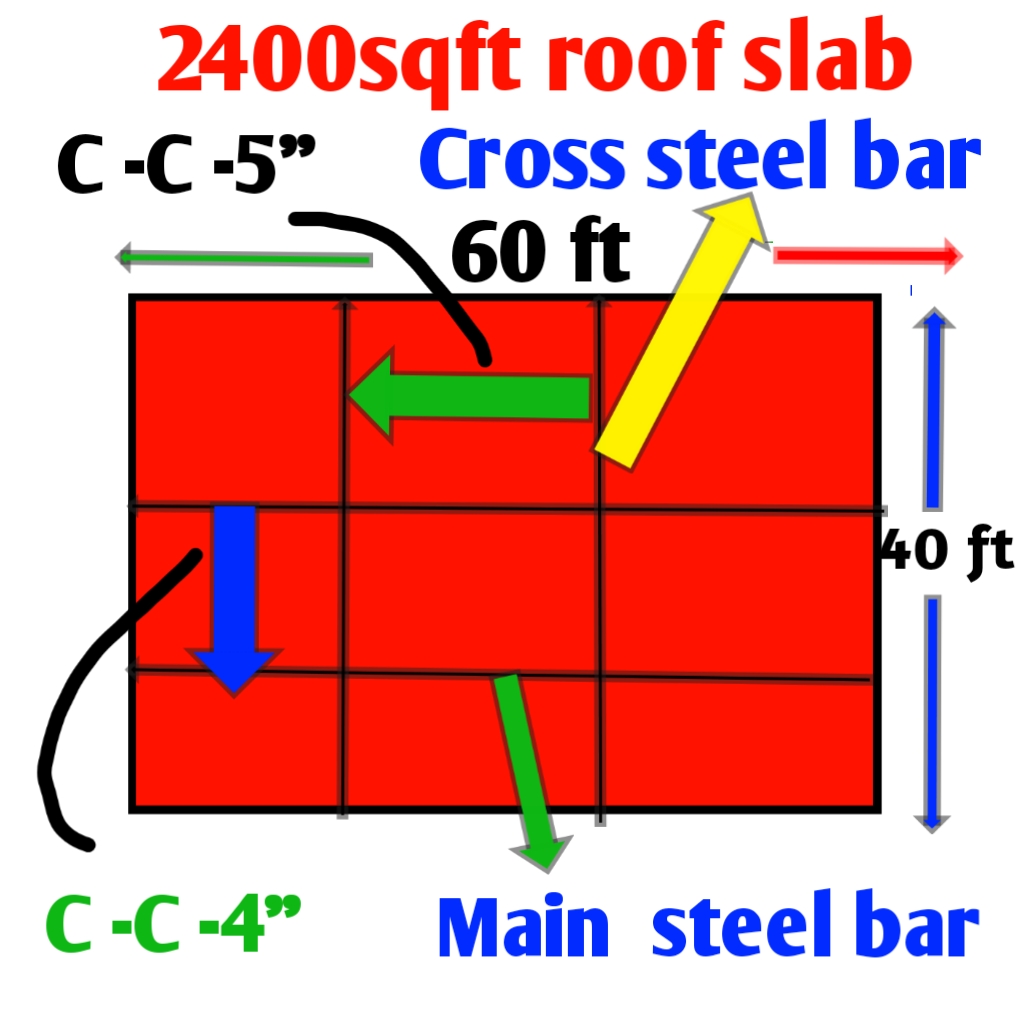

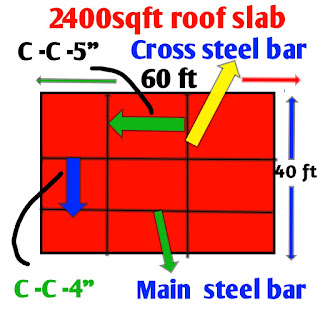

● Steel bar calculation:- In roof slab there is a two types of Steel bar used main bar and cross bar:-
1) Main bar:– it is also called as shortist span bar usually used at bottom of slab having spacing 4 inch between the two bar, main bar used in shorter direction having 10 mm dia of Steel bar.
2) Cross bar:- it is also called as longer span bar or distribution bar mainly used at top of the main bar, cross bar usually dia of 8mm Steel bar used in longer direction.
● Given dimensions:-
Thickness of slab=5″
Length of slab =60′
Breadth of slab=40′
Area of slab =60’×40’=2400 sqft
M -20 -mix =1:1.5:3 (concrete)
|
|
| Roof slab |
●Volume Calculation:-
1) wet volume=Area × thicknessof slab
Vw= 2400 sqft× 5′
Vw= 2400sqft×5/12′
Vw =1000 cft
If you want to convert it into cubic metre you should divide by 35.3147
1m3 =35.3147 cft
Wet volume=1000/35.3147=28.316 m3
2) Dry volume:– we know that wet volume have water and bubbles it can be remove by vibrator or compressor machine so more quantity of material is required hence dry volume is increased by 54 percent of wet volume , so we can multiply 1.54 in wet volume to calculate dry volume
Vd =1.54 ×28.316 m3
Dry volume=43.607m3
Steel required for 2400 sqft RCC slab
●Weight calculation of Steel:- quantity of steel required in roof slab is about 0.5℅ to 1% of dry volume then average is 0.75% of dry volume
Weight =0.75%of dry volume×density of steel
Density of steel is=7850 kg/m3
W =0.75/100×43.607m3 ×7850kg/m3
Weight=2567 kg
So weight of Steel bar is require for 1500 square feet Roof slab= 2567kg
If Market rate of steel bar is 60 rupees per kg then
total cost of Steel bar =2567×rs 60
Total cost= Rs 154041
2567 Kg steel is required for roof casting of 2400 square feet RCC slab and their construction cost is about rs 154041 for steel
Quantity of sand required for 2400 square feet RCC slab
In M20 ratio of sand cement and aggregate is 1:1.5:3 ,in this ratio 1.5 part is sand
Total proportion =1+1.5+3=5.5
Volume of sand in cft
Volume =1.5 /5.5×43.607×35.3147 cft
Volume of sand =420 cft
If market rate of 80 rupees per CFT then total cost of quantity of sand
Total cost =rs80×420
=Rs 33600
420 Cuft sand required for roof casting of 2400 square feet RCC slab and their construction cost is about rs 33600 for sand
Cement required for roof casting of 2400 square feet RCC slab
●Cement calculation:- in M20 mix 1 part is cement quantity
Weight of cement=1/5.5×dry volume in m3×density of cement
Density of cement=1450kg/m3
Weight =1/5.5×43.607 m3×1450 kg/m3
=11496 Kg
1 bag cement =50kg
No.of bags =11496/50
=230 Bags cement
If market rate of cement is 350 rupees per bags then total cost
Total cost =230 ×rs 350
= Rs 80474
230 bags ( 11496 kg) cement is required for roof casting of 2400 RCC slab and their construction cost is about rs 80474 for cement
quantity of aggregate required for 2400 square feet RCC roof slab
●Aggregate Calculation:- in M20 mix there is 3 part of aggregate quantity
Volume of aggregate=3/5.5×dry volume in CFT
Volume =3/5.5×43.607×35.3147 cft
Volume =840cft
If market rate of aggregate is is 70 rupees per CFT then total cost of aggregate
Total cost =rs 70×840
Rs=rs 58800
840 Cuft aggregate is required for roof casting of 2400 square feet RCC slab and their construction cost of aggregate is rs 58800
Calculate construction cost of 2400 square feet RCC slab
● total cost of material:-
Cost of steel=rs 154041 (2567 kg)
Cost of cement=rs 80474 ( 230 bags)
Cost of sand=rs 33600 (420 cuft )
Cost of stone=rs 58800 ( 880 cuft)
Labour charge and machine cost =rs 108000(approx)
Total cost=Rs 434915
Sum of rs 434915 ( 2567 kg steel, 230 bags cement, 420 cuft sand, 880 cuft aggregate and rs 108000) is construction cost of roof casting of 2400 square feet RCC roof slab
What is cost per square feet concrete slab in India
Given area of slab = 2400 sqft
Cost of steel=rs 154041 (2567 kg)
Cost of cement=rs 80474 ( 230 bags)
Cost of sand=rs 33600 (420 cuft )
Cost of stone=rs 58800 ( 880 cuft)
Labour charge and machine cost =rs 108000(approx)
Total cost=Rs 434915
Cost per square feet ( sqft) concrete slab in India = total construction cost/ area of slab
Cost per sqft concrete slab = Rs 434925/2400 sqft
rcc slab construction cost per sqft = rs 182
rs 182 is construction cost of RCC slab per square feet in India
