What is difference between bending and buckling, hi guys in this article we know about what is difference between bending and buckling. As we know both bending and buckling is caused in a structural member due to applied load.

When transverse load is acting perpendicular to neutral axis of structural members is known as bending. Bending in structural member is 2 types sagging and hogging. If we have simply supported beam a structure member which is supported at both end by column when load is applied on beam it will experience positive bending moment and bend in concave face structure in downward direction.

In concave face there is three layer middle one is known as neutral axis, below middle layer there is a tension layer and upper of neutral layer is known as compression layer.

What is difference between bending and buckling
What is difference between bending and buckling

And negative bending moment hogging is takes place in cantilever beam which supported only one end by column and second end is free .when load is applied on cantilever beam it will experience negative bending moment and bend in convex structure in upward direction. top of convex face is in maximum tension and below face in maximum compression.

There is a neutral layer between maximum tension layer and maximum compression layer. And in this article we know about what is difference between bending and buckling.

What is difference between bending and buckling

What is bending?

Bending is the state of stress when transverse load is applied perpendicular to the neutral axis of structural members like beam and structural members experience negative and positive bending moment in downward direction and in upward direction respectively.

When load is acting on a structure member perpendicular to it is known as transverse load.

What is difference between bending and buckling
What is difference between bending and buckling

What is Buckling?

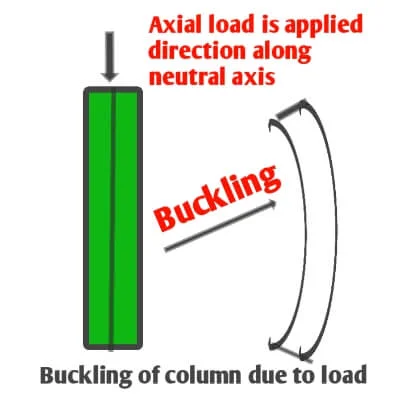

In civil engineering when an object is unable to sustain the load is it suddenly collapse and this collapse is termed as buckling. Buckling is sudden change in shape of a structural component under axial load. Structure is subject to a gradually increasing axial load acting on it when the load reaches a critical level, structure member may suddenly change shape and structure and component is said to have called buckled.

Axial loading on a structural member like column may causes significant and somewhat unpredictable deformation and possibly leading to complete loss of the members load carrying capacity.

◆You Can Follow me on Facebook and Subscribe our Youtube Channel

You should also visits:-

1)what is concrete and its types and properties

2) concrete quantity calculation for staircase and its formula

Different types of load acting on a structure members

1) Axial load :- if the load on a structure member is applied through the centre of gravity of its cross section along the direction of neutral axis it is known as axial load. Axial load acting on the column

2) Eccentric load :– if the load on a structure member is applied at any other in the cross section is known as eccentric load. It is also applied on column

3) Transverse load :- if the load on a structure member is applied perpendicular to neutral axis of a structure member is known as transverse load and it causes bending moment in beam.

What is difference between bending and buckling

The key difference between bending and buckling is that the bending is the the state of stress developed in it when transverse load is applied on it where as buckling is the state of instability when axial load is acting on it.

1) Bending is the the state of stress developed in it when transverse load is applied on it , they experience two type of stress compression and tension and there is a neutral axis between compression and tension zone

Where as buckling is the state of instability when axial load is acting on it, they experience deflection and deformation of structural member like column leads to collapse of structural member.

2) in bending this moment are substantively independent of the resulting deflection

But in buckling the moment and deflection are mutually- interdependent so in moment the deflection and stress are not proportional to load

3) in bending there is no chance of failure of a structure member when transverse load is applied on it

But in buckling there is a chance of failure of a structure member like column when load is reaches a critical level members may suddenly changed its shapes and the structure and component may collapsed.

4) bending is caused due to transverse load in a structure member like beam

But buckling is caused due to axial and eccentric load in a structure member like column.

Conclusions:-

The key difference between bending and buckling is that bending is a stress state and buckling is a instability state.
