The weight of rebar per foot depends on its diameter. For example, a standard #3 rebar weighs approximately 0.376 pounds per foot, #4 is about 0.668 pounds per foot, #5 is around 1.043 pounds per foot, #6 is about 1.502 pounds per foot, #7 is approximately 2.044 pounds per foot, #8 is around 2.670 pounds per foot, #9 is about 3.400 pounds per foot, and #10 is roughly 4.303 pounds per foot.
What is rebar/ reinforcing bar?
Rebar is short form of reinforcing bar, it is steel bar or Steel wire provided as tension bar, used in reinforced concrete structure like column, beam and slab of house construction and it also used in reinforced masonry structure. It is used to increase the tensile strength of concrete structure.
◆You Can Follow me on Facebook and Subscribe our Youtube Channel
You should also visits:-
1)what is concrete and its types and properties
2) concrete quantity calculation for staircase and its formula
Reinforcing bar/rebar surface is often deformed with ribs to promote a better bonding with concrete material and reduce the risk of slippage. The most common Reinforcing bar/rebar is carbon steel of hot rolled round bar with the deformation patterns, the Steel rebar may be also coated with epoxy resin material, design to resist effect of corrosion mostly in saltwater environment.
US based steel/ reinforcing bar sizes and their diameter, as we know that different countries in the world have their own gradation, specification of Steel and record of measurement for reinforcing bar. First remember that rebar is measured differentially in United States and Europe. while the United states, it uses the Imperial measurement system. Europe and most of rest of world uses the metric system.
In this article we briefly explain “what is the weight of number or #3, #4, #5, #6, #7, #8, #9 & #10 rebar per foot” based on Imperial measurement system. This will help to viewers in better understanding and it is easy to choose the most suitable rebar you wanted according to requirement.
Imperial rebar size/ Reinforcing bar size
US/ imperial rebar sizes gives the diameter in units of 1/8 inch (3.2mm), for bar sizes #2 to #10 we use this formula, for example size of number 2 (#2) rebar is of 1/8 inch in metric system measurement, such that 2×1/8 inch = 0.25 inch or 6mm.
Size of #2.5 rebar/ reinforcing bar
US/ Imperial steel rebar/ reinforcing bar available in size number 2.5 rebar, also read as No. 2.5 rebar or #2.5 rebar. size of number 2.5 (#2.5) rebar is of 1/8 inch in metric system measurement, such that 2.5×1/8 inch = 0.3125 inch or 8mm.
Size of #3 rebar/ reinforcing bar
US/ Imperial steel rebar/ reinforcing bar available in size number 3 rebar, also read as No. 3 rebar or #3 rebar. size of number 3 (#3) rebar is of 1/8 inch in metric system measurement, such that 3×1/8 inch = 3/8 inch or 10mm, therefore size of number 3 rebar in metric system is about 10mm.
Size of #4 rebar/ reinforcing bar
US/ Imperial steel rebar/ reinforcing bar available in size number 4 rebar, also read as No. 4 rebar or #4 rebar. size of number 4 (#4) rebar is of 1/8 inch in metric system measurement, such that 4×1/8 inch = 1/2 inch or 12mm, therefore size of number 4 rebar in metric system is about 12mm.
◆You Can Follow me on Facebook and
Subscribe our Youtube Channel
Size of #5 rebar/ reinforcing bar
US/ Imperial steel rebar/ reinforcing bar available in size number 5 rebar, also read as No. 5 rebar or #5 rebar. size of number 5 (#5) rebar is of 1/8 inch in metric system measurement, such that 5×1/8 inch = 5/8 inch or 16mm, therefore size of number 6 rebar in metric system is about 16mm.
Size of #6 rebar/ reinforcing bar
US/ Imperial steel rebar/ reinforcing bar available in size number 6 rebar, also read as No. 6 rebar or #6 rebar. size of number 6 (#6) rebar is of 1/8 inch in metric system measurement, such that 6×1/8 inch = 3/4 inch or 20mm, therefore size of number 6 rebar in metric system is about 20mm.
Size of #7 rebar/ reinforcing bar
US/ Imperial steel rebar/ reinforcing bar available in size number 7 rebar, also read as No. 7 rebar or #7 rebar. size of number 7 (#7) rebar is of 1/8 inch in metric system measurement, such that 7×1/8 inch = 7/8 inch or 22mm, therefore size of number 7 rebar in metric system is about 22mm.
Size of #8 rebar/ reinforcing bar
US/ Imperial steel rebar/ reinforcing bar available in size number 8 rebar, also read as No. 8 rebar or #8 rebar. size of number 8 (#8) rebar is of 1/8 inch in metric system measurement, such that 8×1/8 inch = 1 inch or 25mm, therefore size of number 8 rebar in metric system is about 25mm.
ALSO READ :-
Rod weight per bundle: 12mm, 10mm, 8mm, 16mm, 20mm & 25mm steel bar
Rod weight per piece: 12mm, 10mm, 8mm, 16mm, 20mm & 25mm steel bar
Rod weight per meter: 12mm, 10mm, 8mm, 16mm, 20mm & 25mm steel bar
Weight of number 3, 4, 5, 6, 7, 8, 9 & 10 rebar per foot
Weight of number 3, 4, 5, 6, 7, 8, 9 & 10 rebar per meter
Weight of #2, #3, #4, #5, #6, #7, #8, #9 and #10 US/ imperial rebar
Weight of 10M, 15M, 20M, 25M, 30M, 35M, 45M, 55M Canadian rebar
Size of #9 rebar/ reinforcing bar
US/ Imperial steel rebar/ reinforcing bar available in size number 9 rebar, also read as No. 9 rebar or #9 rebar. size of number 9 (#9) rebar is of 1/8 inch in metric system measurement, such that 9×1/8 inch = 9/8 inch or 29mm, therefore size of number 9 rebar in metric system is about 29mm.
Size of #10 rebar/ reinforcing bar
US/ Imperial steel rebar/ reinforcing bar available in size number 10 rebar, also read as No. 10 rebar or #10 rebar. size of number 10 (#10) rebar is of 1/8 inch in metric system measurement, such that 10×1/8 inch = 5/4 inch or 32mm, therefore size of number 10 rebar in metric system is about 32mm.
It is also available in number 11, 14 and 18 rebar, it will be also customize according to requirement of customers.
What is the weight of number 3, 4, 5, 6, 7, 8, 9 & 10 rebar per foot
The size of the rebar/ Reinforcing bar used in construction work in number 3 rebar (10mm), number 4 rebar (12mm), number 5 rebar (16mm), number 6 rebar (20mm), number 8 rebar (25mm), number 9 rebar (28mm) and number 10 rebar (32mm).
Weight of rebar per foot/ rebar weight per foot/ rebar weights per foot
Rebar weight:- weight of #2.5 rebar/ reinforcing bar or 8 mm rebar will be 0.265 pound per foot, for #3 rebar it will be 0.376 lbs, for #4 rebar it will be 0.668 lbs, for #5 rebar it will be 1.043 lbs, for #6 rebar it will be 1.502 lbs, for #7 rebar it will be 2.044 lbs, for #8 rebar it will be 2.670 lbs, for #9 rebar it will be 3.40 lbs and for #10 rebar it will be 4.303 lbs/ foot.
Rebar weight per foot:- weight of number 2.5 rebar/ reinforcing bar will 0.265 lbs per foot, #3 rebar will be 0.376 lbs, #4 rebar will be 0.668 lbs, #5 rebar will be 1.043 lbs, #6 rebar will be 1.502 lbs, #7 rebar will be 2.044 lbs, #8 rebar will be 2.670 lbs, #9 rebar will be 3.40 lbs and #10 rebar will be 4.303 lbs per foot.
Weight rebar per foot:- Weight of #4 rebar will be 0.668 lbs per foot, #2.5 rebar/ reinforcing bar will 0.265 lbs per foot, #3 rebar will be 0.376 lbs per foot, #5 rebar will be 1.043 lbs per foot, #6 rebar will be 1.502 lbs per foot, #7 rebar will be 2.044 lbs per foot, #8 rebar will be 2.670 lbs per foot, #9 rebar will be 3.40 lbs per foot and #10 rebar will be 4.303 lbs per foot.
Formula for rebar weight calculation
To find the weight of rebar/reinforcing bar per foot in length you have to just apply a simple formula – (Diameter)*(Diameter) / 533 Kg/foot or D^2/533, where D is diameter of rebar in mm.
Rebar weight per foot:- #2.5 rebar (8 mm rebar) weighs 0.265 pounds per foot. #3 rebar weighs 0.376 pounds per foot. #4 rebar weighs 0.668 pounds per foot. #5 rebar weighs 1.043 pounds per foot. #6 rebar weighs 1.502 pounds per foot. #7 rebar weighs 2.044 pounds per foot. #8 rebar weighs 2.670 pounds per foot. #9 rebar weighs 3.40 pounds per foot. #10 rebar weighs 4.303 pounds per foot.
Weight of #2.5 rebar per foot
Weight of #2.5 rebar / number 2.5 rebar/ reinforcing bar or 8 mm rebar will be 0.265 pounds per foot ( 0.39 kilograms per meter ) or which is approximately equal as 0.12 kg/foot (8×8)/ 533 = 0.12 kg/ foot).
Weight of #3 rebar per foot
Weight of #3 rebar / number 3 rebar / reinforcing bar or 3/8″ (10 mm) rebar will be 0.376 pounds per foot (0.561 kilograms per meter ) or which is approximately equal as 0.1876 kg/foot (10×10)/ 533 = 0.1876 kg/ foot).
Weight of #4 rebar per foot
Weight of #4 rebar / number 4 rebar / reinforcing bar or 1/2″ (12 mm) rebar will be 0.668 pounds per foot (0.996 kilograms per meter ) or which is approximately equal as 0.270 kilogram per foot {(12×12)/ 533 = 0.270 kg/ foot)}.
Weight of #5 rebar per foot
Weight of #5 rebar / number 5 rebar / reinforcing bar or 5/8″ (16 mm) rebar will be 1.043 pounds per foot ( 1.556 kilograms per meter ) or which is approximately equal as 0.48 kg/foot {(16×16)/ 533 = 0.48 kg/ foot)}.
Weight of #6 rebar per foot
Weight of #6 rebar / number 6 rebar / reinforcing bar or 3/4″ (20 mm) rebar will be 1.502 pounds per foot ( 2.24 kilograms per meter ) or which is approximately equal as 0.75 kg/foot {(20×20)/ 533 = 0.75 kg/ foot)}.
Weight of #7 rebar per foot
Weight of #7 rebar / number 7 rebar/ reinforcing bar or 22 mm rebar will be 2.044 pound per foot ( 3.049 kilogram per meter ) or which is approximately equal as (22×22)/533 = 0.908 kg/ foot or when it measured in pounds, then it will be 2.044 lbs/foot.
Weight of #8 rebar per foot
Weight of #8 rebar / number 8 rebar/ reinforcing bar or 25 mm rebar will be 2.670 pound per foot ( 3.982 kilogram per meter ) or which is approximately equal as (25×25)/533= 1.173kg/ foot or when it measured in pounds, then it will be 2.670 lbs/foot.
Weight of #9 rebar per foot
Weight of #9 rebar / number 9 rebar/ reinforcing bar or 28mm rebar will be 3.40 pound per foot ( 5.701 kilogram per meter ) or which is approximately equal as (28×28)/533 = 1.47 kg/foot or when it measured in pounds, then it will be 3.40 lbs/foot.
Weight of #10 rebar per foot
Weight of #10 rebar / number 10 rebar or 32 mm rebar/ reinforcing bar will be 4.303 pounds per foot ( 6.418 kilogram per meter )or which is approximately equal as (32×32)/533 = 1.92 kg/ foot or when it measured in pounds, then it will be 4.303 lbs/foot.
Weight of number 11 (#11) rebar or 36 mm rebar per foot will be (36×36)/ 533= 2.43 kg/ foot or when it measured in pounds, then it will be 5.313 lbs/foot.
How much does a 20′ stick of #4 rebar weight
The typical weight of a 20′ stick of #4 rebar is about 13.36 pound (6.05kg). The #4 rebar weighs 0.668 pound per foot. So, 20 feet stick of 4 rebar weighs 0.668 x 20 = 13.36 pound.
How much does a 20′ stick of #3 rebar weight
The typical weight of a 20′ stick of #3 rebar is about 7.52 pound (3.4kg). The #3 rebar weighs 0.376 pound per foot. So, 20 feet stick of 3 rebar weighs 0.376 x 20 = 7.52 pound.
How much does a 20′ stick of #5 rebar weight
The typical weight of a 20′ stick of #5 rebar is about 20.86 pound (9.46kg). The #4 rebar weighs 1.043 pound per foot. So, 20 feet stick of 5 rebar weighs 1.043 x 20 = 20.86 pound.
How much does a 20′ stick of #6 rebar weight
The typical weight of a 20′ stick of #6 rebar is about 30.04 pound (13.62kg). The #6 rebar weighs 1.502 pound per foot. So, 20 feet stick of 6 rebar weighs 1.502 x 20 = 30.04 pound.
How much does a 20′ stick of #7 rebar weight
The typical weight of a 20′ stick of #7 rebar is about 40.88 pound (18.54kg). The #7 rebar weighs 2.044 pound per foot. So, 20 feet stick of 7 rebar weighs 2.044 x 20 = 40.88 pound.
How much does a 20′ stick of #8 rebar weight
The typical weight of a 20′ stick of #8 rebar is about 53.40 pound (24.22kg). The #8 rebar weighs 2.670 pound per foot. So, 20 feet stick of 8 rebar weighs 2.670 x 20 = 53.40 pound.
ALSO READ :-
Rod weight per bundle: 12mm, 10mm, 8mm, 16mm, 20mm & 25mm steel bar
Rod weight per piece: 12mm, 10mm, 8mm, 16mm, 20mm & 25mm steel bar
Rod weight per meter: 12mm, 10mm, 8mm, 16mm, 20mm & 25mm steel bar
Weight of number 3, 4, 5, 6, 7, 8, 9 & 10 rebar per foot
Weight of number 3, 4, 5, 6, 7, 8, 9 & 10 rebar per meter
Weight of #2, #3, #4, #5, #6, #7, #8, #9 and #10 US/ imperial rebar
Weight of 10M, 15M, 20M, 25M, 30M, 35M, 45M, 55M Canadian rebar
Unit weight of rebar in kg/ft
Unit weight of rebar is defined as mass per unit length, if weight reinforcing bar/ rebar measured in Kilogram per foot known as Unit weight of rebar in kg/ ft.
Unit Weight of 8mm rebar is 0.12kg/foot, for 10mm rebar, it could be 0.1876kg/foot, for 12mm rebar, it could be 0.27kg/ft, for 16mm rebar, it could be 0.48kg/ft, for 20mm rebar, it could be 0.75kg/ foot, for 22mm rebar, it could be 0.90kg/ ft, for 25mm rebar, it could be 1.173kg/ foot, for 28mm rebar, it could be 1.47kg/ foot, for 32mm rebar, it could be 1.92kg/ foot and unit weight for 36mm rebar, it could be 2.43 kg/foot.
Unit weight of rebar in lb/ft
Unit weight of rebar is defined as mass per unit length, if weight reinforcing bar/ rebar measured in pounds per foot known as Unit weight of rebar in lb/ ft.
Unit Weight of 8mm or #2.5 rebar is 0.265lb/foot, for 10mm or #3 rebar, it could be 0.376lb/foot, for 12mm or #4 rebar, it could be 0.668lb/ft, for 16mm or #5 rebar, it could be 1.043lb/ft, for 20mm or #6 rebar, it could be 1.502lb/ foot, for 22mm or #7 rebar, it could be 2.044lb/ ft, for 25mm or #8 rebar, it could be 2.67lb/ foot, for 28mm or #9 rebar, it could be 3.40lb/ foot, for 32mm or #10 rebar, it could be 4.303lb/ foot and unit weight for 36mm or #11 rebar, it could be 5.313lb/foot.

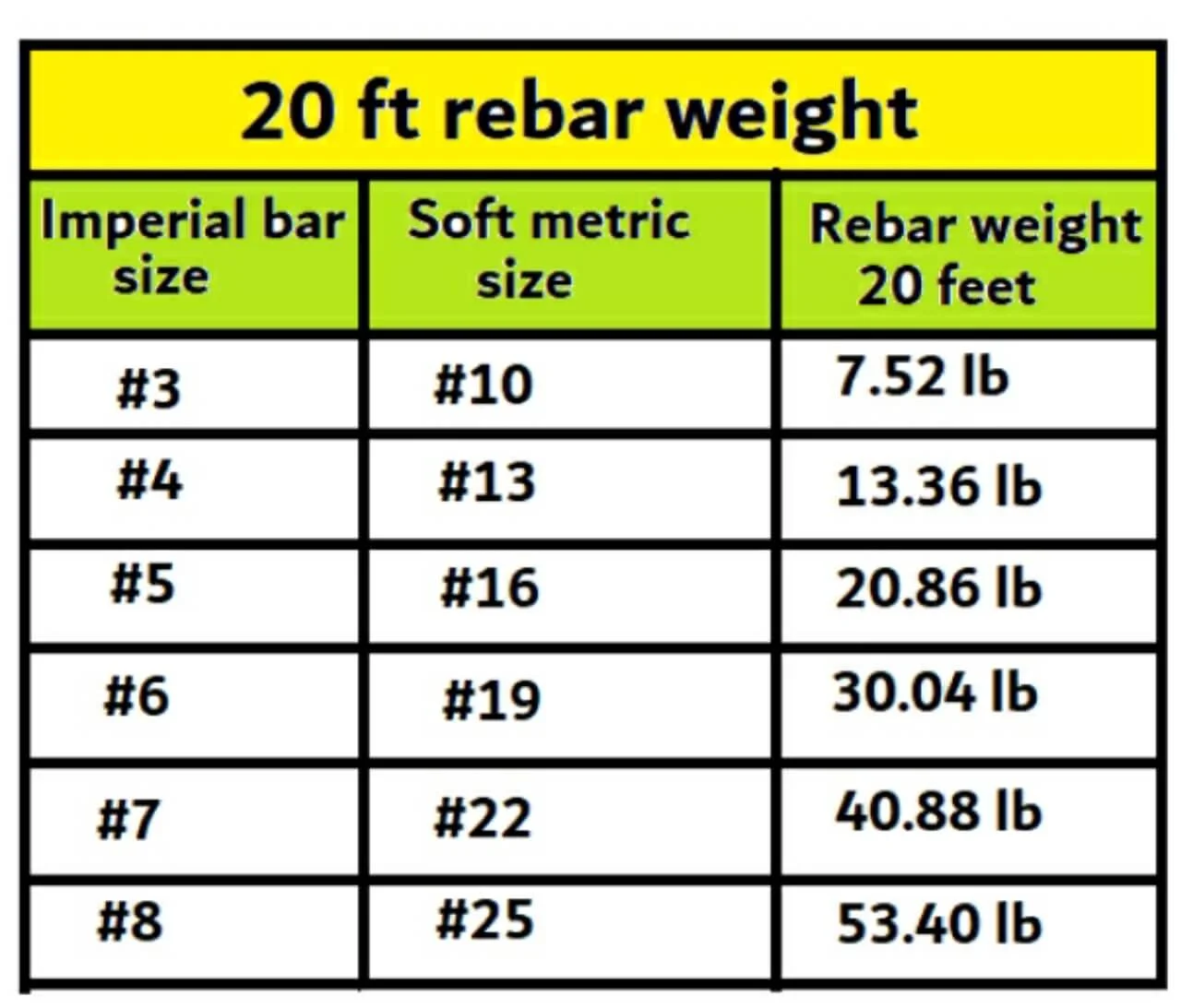

20 feet rebar weight

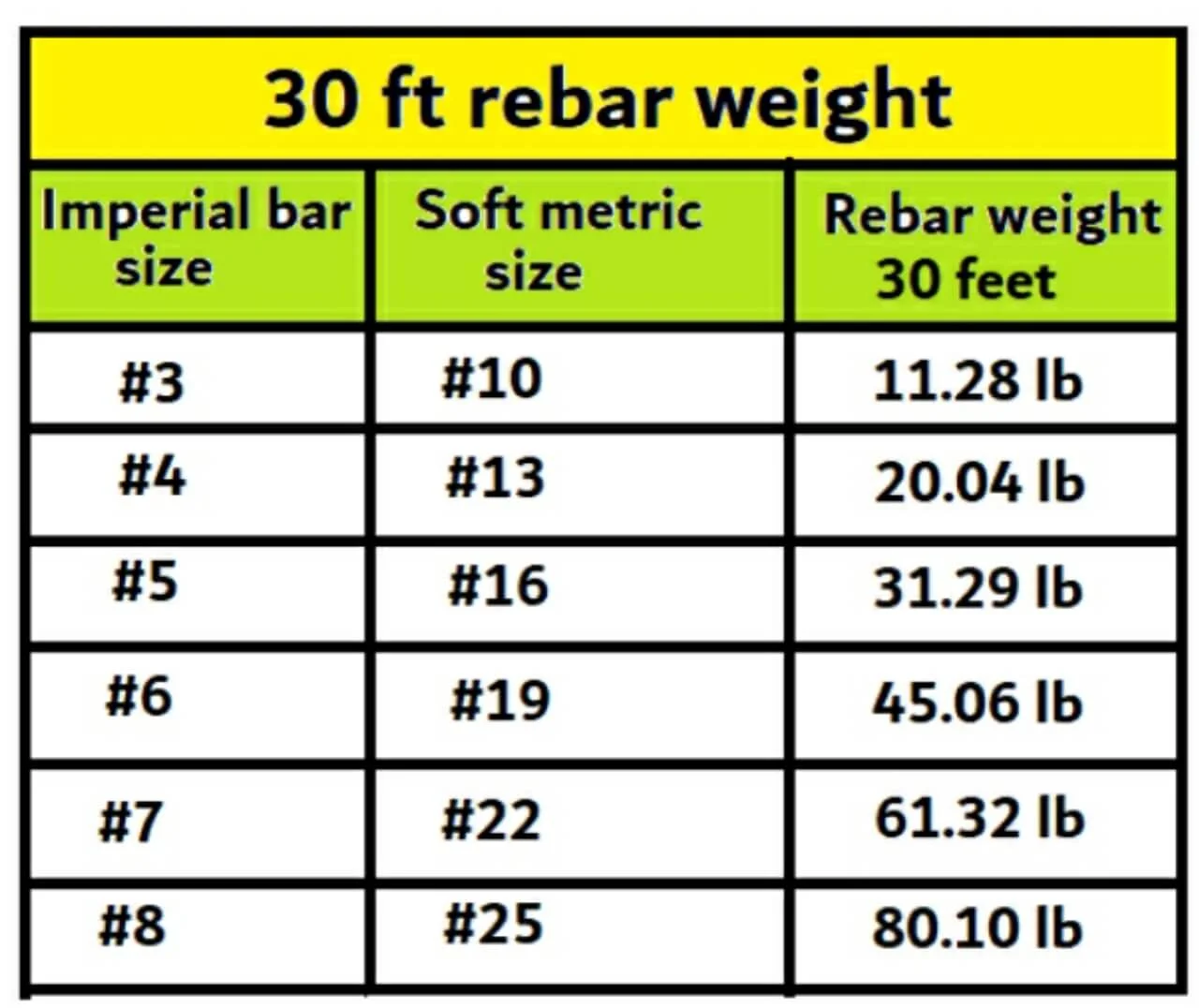

30 feet rebar weight

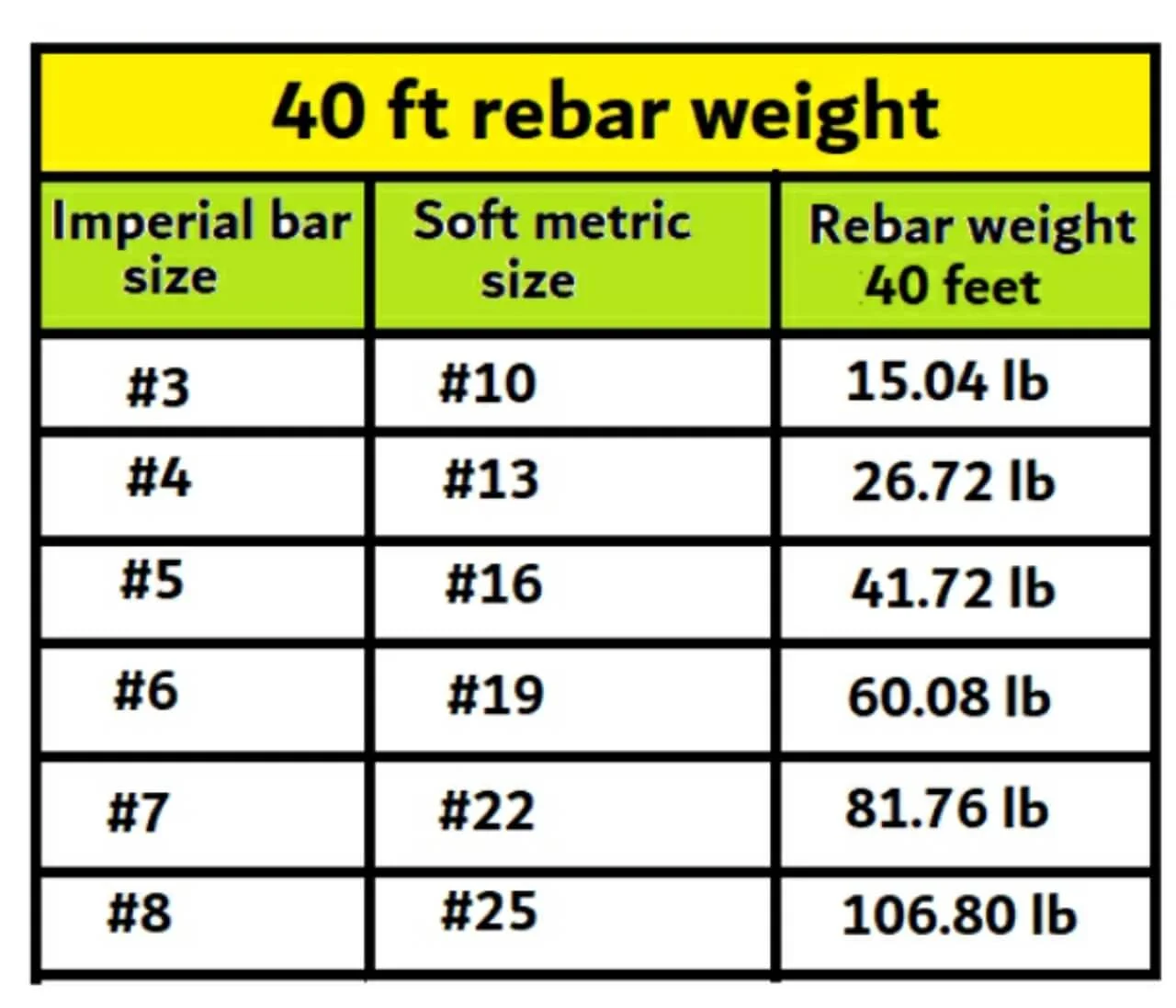

40 feet rebar weight

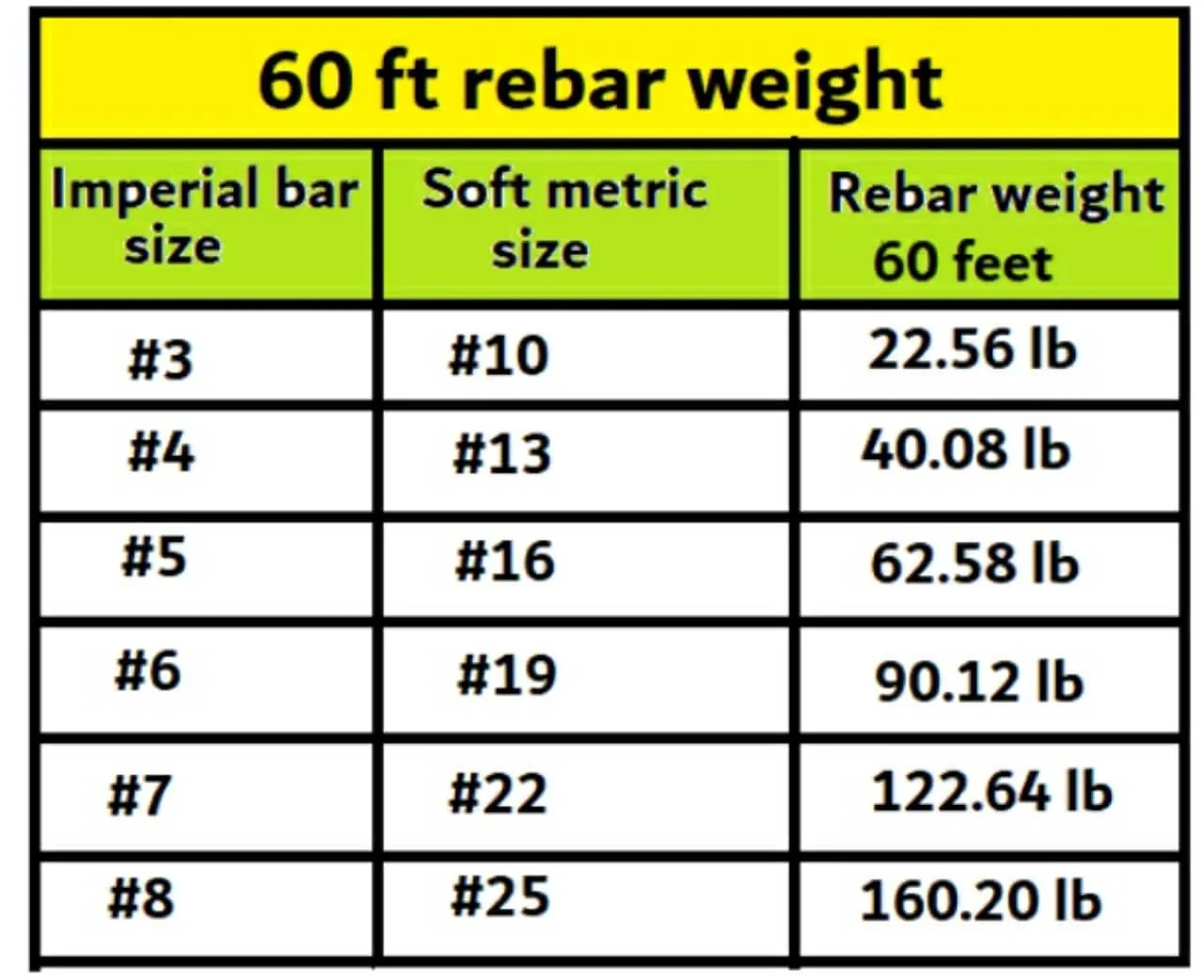

60 feet rebar weight
Physical characteristics of rebar
Physical characteristics of #4 rebar
● Imperial bar size – #4 or 1/2″
● soft metric size – #13 or 13mm
● #4 rebar weight per foot – 0.668 lbs/ft
● #4 rebar weight per meter – 0.996 kg/m
● nominal diameter – 1/2″ or 12.7mm
● nominal area – 0.2 sq inches (129mm2)
● 20 ft rebar weight – 13.36 lbs
● 30 ft rebar weight – 20.04 lbs
● 40 ft rebar weight – 26.72 lbs
● 60 ft rebar weight – 40.08 lbs
● weight per unit length – 0.668 lb/ft (0.996 kg/m).
● 20 ft pieces per ton – 149.7
● 30 ft pieces per ton – 99.8
● 40 ft pieces per ton – 74.9
● 60 ft pieces per ton – 49.9
Physical characteristics of #3 rebar
● Imperial bar size – #3 or 3/8″
● soft metric size – #10 or 10mm
● #4 rebar weight per foot – 0.376 lbs/ft
● #4 rebar weight per meter – 0.559 kg/m
● nominal diameter – 3/8″ or 9.525mm
● nominal area – 0.11 sq inches (71mm2)
● 20 ft rebar weight – 7.52 lbs
● 30 ft rebar weight – 11.28 lbs
● 40 ft rebar weight – 15.04 lbs
● 60 ft rebar weight – 22.56 lbs
● weight per unit length – 0.376 lb/ft (0.559 kg/m)
● 20 ft pieces per ton – 266
● 30 ft pieces per ton – 177.3
● 40 ft pieces per ton – 133
● 60 ft pieces per ton – 88.7
Physical characteristics of #5 rebar
● Imperial bar size – #5 or 5/8″
● soft metric size – #16 or 16mm
● #4 rebar weight per foot – 1.043 lbs/ft
● #4 rebar weight per meter – 1.55 kg/m
● nominal diameter – 5/8″ or 15.875mm
● nominal area – 0.39 sq inches (252mm2)
● 20 ft rebar weight – 20.86 lbs
● 30 ft rebar weight – 31.29 lbs
● 40 ft rebar weight – 41.72 lbs
● 60 ft rebar weight – 62.58 lbs
● weight per unit length – 1.043 lb/ft (1.55 kg/m)
● 20 ft pieces per ton – 95.9
● 30 ft pieces per ton – 63.9
● 40 ft pieces per ton – 47.9
● 60 ft pieces per ton – 32
Physical characteristics of #6 rebar
● Imperial bar size – #6 or 3/4″
● soft metric size – #19 or 19mm
● #4 rebar weight per foot – 1.502 lbs/ft
● #4 rebar weight per meter – 2.234 kg/m
● nominal diameter – 3/4″ or 19.05mm
● nominal area – 0.44 sq inches (285mm2)
● 20 ft rebar weight – 30.04 lbs
● 30 ft rebar weight – 45.06 lbs
● 40 ft rebar weight – 60.08 lbs
● 60 ft rebar weight – 90.12 lbs
● weight per unit length – 1.502 lb/ft (2.234 kg/m)
● 20 ft pieces per ton – 66.6
● 30 ft pieces per ton – 44.4
● 40 ft pieces per ton – 33.3
● 60 ft pieces per ton – 22.2
Physical characteristics of #7 rebar
● Imperial bar size – #7 or 7/8″
● soft metric size – #22 or 22mm
● #4 rebar weight per foot – 2.044 lbs/ft
● #4 rebar weight per meter – 3.04 kg/m
● nominal diameter – 7/8″ or 22.225mm
● nominal area – 0.765 sq inches (494mm2)
● 20 ft rebar weight – 40.88 lbs
● 30 ft rebar weight – 61.32 lbs
● 40 ft rebar weight – 81.76 lbs
● 60 ft rebar weight – 122.64 lbs
● weight per unit length – 2.044 lb/ft (3.04 kg/m)
● 20 ft pieces per ton – 48.9
● 30 ft pieces per ton – 32.6
● 40 ft pieces per ton – 24.5
● 60 ft pieces per ton – 16.3
Physical characteristics of #8 rebar
● Imperial bar size – #8 or 1″
● soft metric size – #25 or 25mm
● #4 rebar weight per foot – 2.67 lbs/ft
● #4 rebar weight per meter – 3.97 kg/m
● nominal diameter – 1″ or 25mm
● nominal area – 1 sq inches (645.16mm2)
● 20 ft rebar weight – 53.40 lbs
● 30 ft rebar weight – 80.10 lbs
● 40 ft rebar weight – 106.80 lbs
● 60 ft rebar weight – 160.20 lbs
● weight per unit length – 2.67 lb/ft (3.97 kg/m)
● 20 ft pieces per ton – 37.5
● 30 ft pieces per ton – 25
● 40 ft pieces per ton – 18.7
● 60 ft pieces per ton – 12.5
Conclusion:-
Weight of #2.5 rebar/ reinforcing bar will 0.265 pounds per foot, #3 rebar weighs about 0.376 pounds per foot, #4 rebar weighs around 0.668 pound per foot, #5 rebar weighs approximately 1.043 pound per foot, #6 rebar weighs 1.502 pounds per foot, #7 rebar weighs 2.044 pound per foot, #8 rebar weighs 2.670 pound per foot, #9 rebar weighs 3.40 pound per foot and #10 rebar weighs 4.303 pounds per foot.
