How to calculate concrete volume for retaining wall, what is retaining wall and how to calculate its concrete quantity required for load bearing structure.

A retaining wall is a load bearing structure designed to hold back soil and prevent it from eroding or collapsing. The calculation of concrete quantity required for a retaining wall depends on several factors, such as the dimensions of the retaining wall, thickness, and type of wall.

To calculate the concrete quantity required for retaining walls, you’ll need to determine:

To calculate the volume of the Retaining Wall, you can need to measure the length, width, and height (thickness) of the retaining wall in meters and calculate the volume using the formula: Volume = Length × Width × Height.

Concrete Mix Ratio: the standard mix, which has a ratio of 1:2:3 (cement: sand: aggregates) or 1:2:4, is the most popular kind of concrete mixture (cement: sand: gravel) is good for retaining wall.

Use the density of concrete is typically around 2400 kg/m³. Calculate the concrete Quantity:(in cubic meters) = Volume × Density.

**What is retaining wall?**

The retaining wall are rigid wall used in hilly area to prevent from landslide of elevated soil and Stone on the road and different path.

The retaining wall used in supporting soil due to a unnatural elevation on two sides. The retaining wall structure design to restrain the soil and it is made of concrete wall, bricks wall and stone wall

We can see that in hilly area retaining wall constructed around the road to prevent from landslide of soil and Stone. And also several bridge and large Dam areas there is a retaining wall is constructed to prevent from load of flow of water and strength of soil elevated in down position.

**How to calculate concrete quantity**** for retaining wall.**

The retaining wall volume calculation and in this topic how we calculate concrete volume for retaining wall and quantity of sand cement and aggregate.

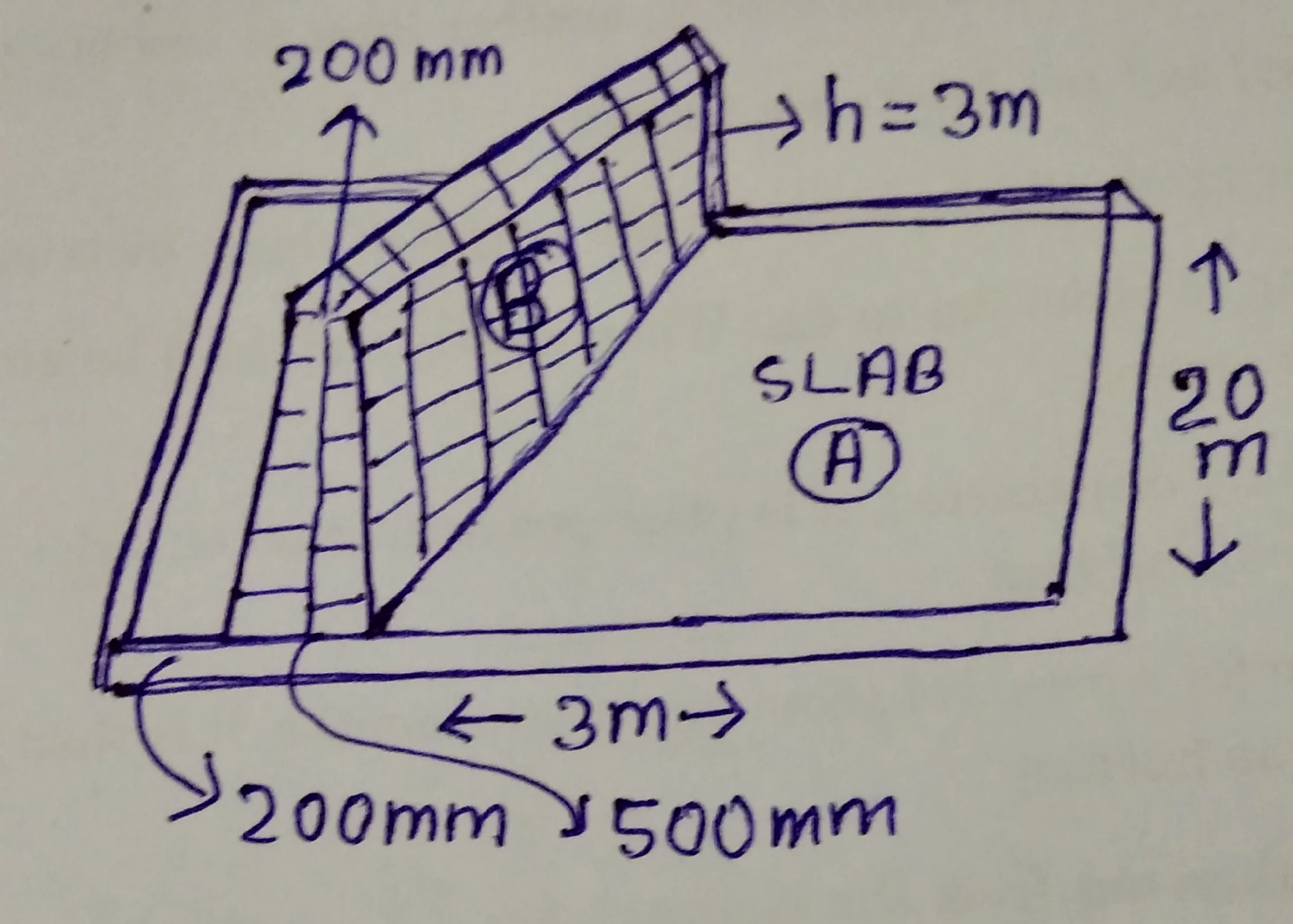

Concrete of retaining wall is made of two part one part is A slab of concrete and B part is retaining wall of concrete .we have to calculate both volume of part A and part B.

Total volume = Volume A + volume B

***Calculation steps:**– retaining wall calculation used for estimate

1) volume of part A slab

2) volume of part B retaining wall

3) total volume of retaining wall

4) wet and dry volume of concrete

5) mix ratio of concrete

6) quantity of cement

7) quantity of sand

8) quantity of aggregate

**Now we calculate volume of part A slab**

Given measurement of slab

Length of slab = 20 m

width of slab = 3 m

thickness of slab =200mm =0.2 m

Volume of slab =l ×b ×t

Volume of slab = 20×3×0.2=12 m3

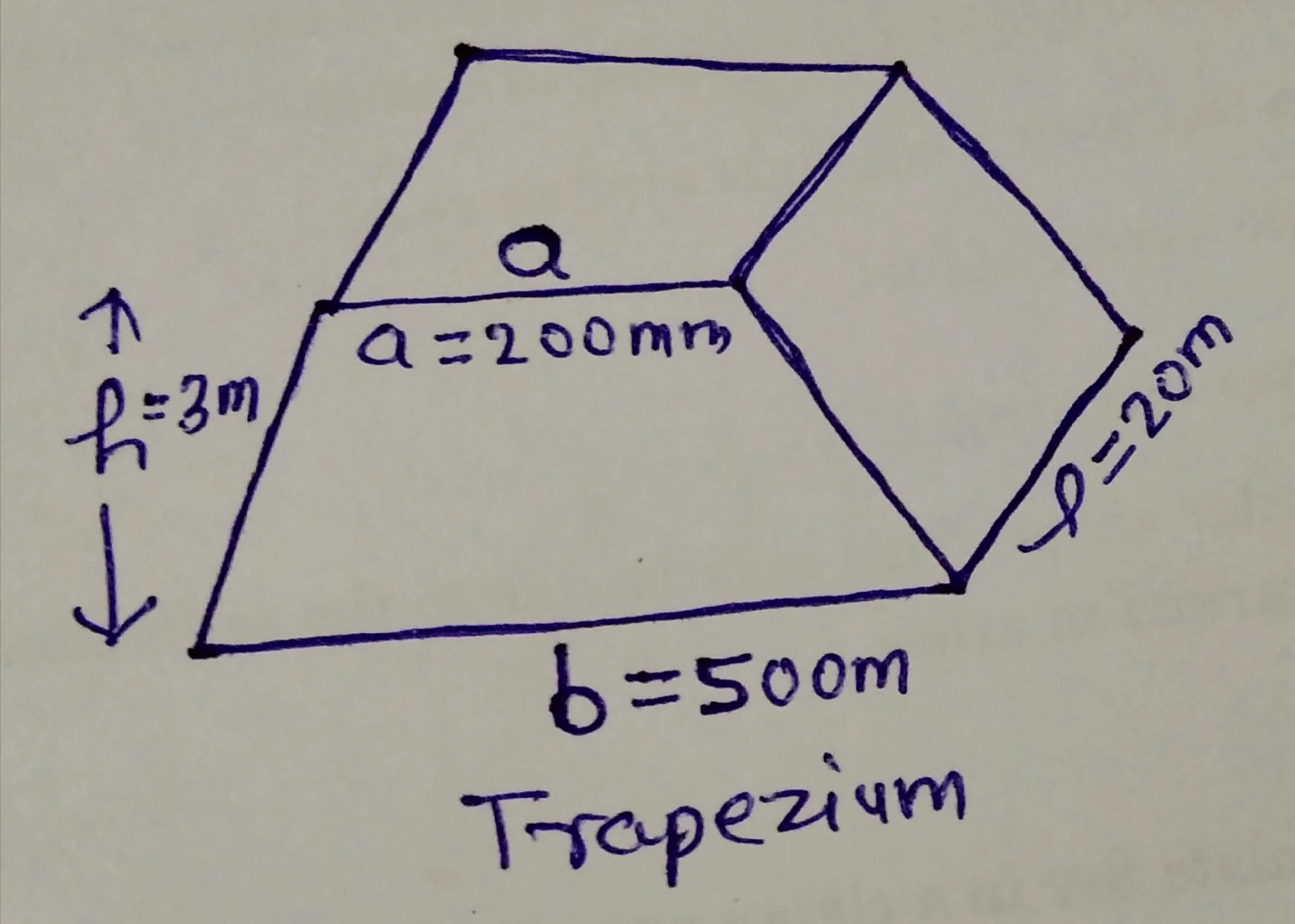

**The volume of part B retaining wall ,we know that retaining wall is in trapezium shape**

area of trapezium = (a +b)/2 × h

Volume of trapezium

= (a+ b)/2 × h×l

Given measurement:-

Height of retaining wall =3 m

length of retaining wall =20m

width at base level =500mm=0.5m

width at top level =200mm=0.2m

Volume = (0.2+0.5)/2 ×3×20 m3

Volume of retaining wall = 21 m3

3) **Total volume of retaining wall **

We should add volume of part A and part B to find total volume of retaining wall

Volume of part A =12 m3

Volume of part B = 21 m3

Total volume of retaining wall

= volume of part A+volume of part B

Total volume =12+21= 33m3

**1)what is concrete and its types and properties**

**2) concrete quantity calculation for staircase and its formula**

**3) how to calculate weight of mild steel plate and derive its formula**

**4) calculate quantity of cement Sand for brickwork of 10m3**

**5) cement calculation in tile work of hundred square foot area**

**6) weight calculation of Steel bar and its formula**

**7) what is admixture of concrete and its types and its properties**

4) **Wet volume and dry volume :-**

total volume of retaining wall is wet volume and we have to calculate dry volume by multiplying cofactor 1.54 in in wet volume

Wet volume = 33m3

Dry volume =1.54×33 =50.82 m3

50.82 cubic meter ( m3) volume of concrete is required for formation of trapezium shape retaining wall.

5) **Mix ratio of concrete:- mix ratio of concrete is two** type one is ordinary type in which M10 and M15 grade of concrete are used and second one is a standard concrete type in which M20 and M25 grade of concrete is used. But M20 and when M25 is good concrete. Mix ratio of M20 is:-1:1.5:3 and mix ratio M 25 is 1:1:2

In this calculation we use M20 type of concrete

Mix ratio in M20 —(1:1.5:3)

53 Grade of Portland cement 1part

Fine aggregate (sand) – 1.5 part

Coarse aggregate – 3 part

Total proportion = 1+1.5+3= 5.5

**Quantity calculation of cement for retaining wall**

Volume of cement required

1m3 = 35.3147 cft

= 1/5.5×50.82×35.3147 =326.307 cft

1bag cement = 1.226 cft

Number of bag of cement

= 326.307/1.226 =266 no. of bags

Typically 266 bags cement is required for construction of trapezium shaped retaining wall

**Quantity of sand the required for retaining wall**

Volume of sand in CFT (cubic foot)

= (1.5/5.5) ×50.82×35.3147=489.46cft

Typically 489.46 Cuft of sand quantity is required for construction of trapezium shape retaining wall

**Quantity of aggregate required for retaining wall**

Volume of aggregate in cft

= (3/5.5)×50.82×35.3147 = 979 CFT

In general, 979 Cuft aggregate quantity is required for construction of of trapezium shaped retaining wall

Typically, 266 bags cement, 489.46 CFT sand and 979 CFT aggregate quantity is required for construction of of trapezium shaped retaining wall
